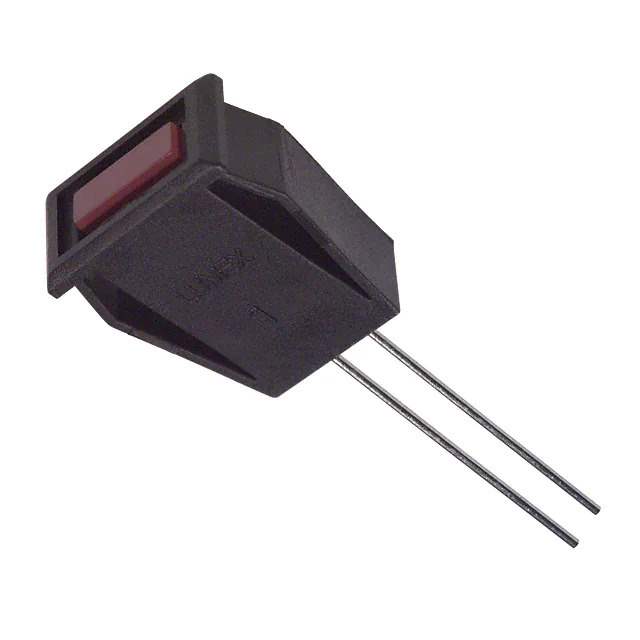

SSI-LXH072ID Real Image
Same model may have multiple batches, images only for reference.

SSI-LXH072ID

Part No SSI-LXH072ID
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 2.3X7MM RED PANEL MOUNT / LED Panel Indicator Red Diffused 110° 2V 30mA
Datasheet
SSI-LXH072ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Product Status Active
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2V
Current 30mA
Panel Cutout Shape Rectangle
Panel Cutout Dimensions 0.43" x 0.21" (11.00mm x 5.30mm)
Lens Size 7.00mm x 2.30mm
Lens Style Rectangle with Flat Top
Millicandela Rating 15mcd
Wavelength - Peak 635nm
Viewing Angle 110°
Base Product Number SSI-LXH072
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 935056-SSI-LXH072ID
Ultra Librarian 3D Model Ultra Librarian SSI-LXH072ID CAD Model

Description

The 935056-SSI-LXH072ID is a panel indicator or pilot light in the optoelectronics category. It is an LED type indicator with a red lens color.

  • Category: Optoelectronics
  • Type: Panel Indicator / Pilot Light
  • LED Color: Red
  • Voltage Rating: 2V
  • Current Rating: 30mA
  • Lens Style: Rectangle, Flat Top
  • Lens Size: 7.00mm x 2.30mm
  • Mounting: Surface Mount
  • Package: Bulk
  • Pieces per Package: 100
  • ECCN: EAR99
  • REACH: Unaffected
  • Manufacturer: Lumex Opto/Components Inc.
  • Status: Active
