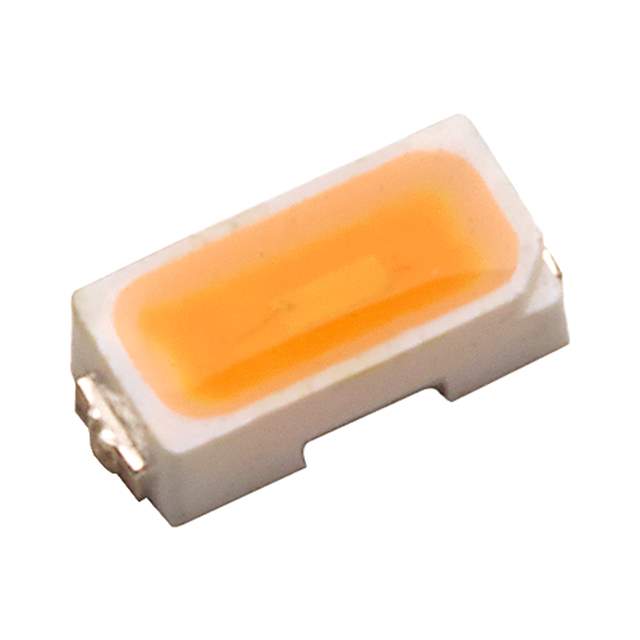

L130-5080001400001 Real Image
Same model may have multiple batches, images only for reference.

L130-5080001400001

Part No L130-5080001400001
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5000K 2SMD  /  LED Lighting series White, Cool 5000K 3.1V 60mA 1206 (3014 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3014
Package Tape & Reel
Product Status Obsolete
Color White, Cool
CCT (K) 5000K
Flux @ 25°C, Current - Test 23lm (Typ)
Current - Test 60mA
Voltage - Forward (Vf) (Typ) 3.1V
Lumens/Watt @ Current - Test 124 lm/W
CRI (Color Rendering Index) 80
Current - Max 100mA
Mounting SMD (SMT)
Package / Case 1206 (3014 Metric)
Supplier Device Package 3014
Dimension 0.118" L x 0.055" W (3.00mm x 1.40mm)
Height - Seated (Max) 0.033" (0.83mm)
Thermal Resistance of Package 35°C/W
Base Product Number L130
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1220-6,1416-1220-2,1416-1220-1
Standard Package 3,000
Win Source Part Number 977679-L130-5080001400001
Ultra Librarian 3D Model Ultra Librarian L130-5080001400001 CAD Model

Description

The LUXEON 3014 series from Lumileds is an SMD (SMT) LED lighting component that comes in a 1206 (3014 Metric) package. Lumileds LUXEON 3014 series is an SMD (SMT) LED lighting component that comes in a 1206 (3014 Metric) package.

  • Package: 1206 (3014 Metric)
  • Color: Cool White
  • CCT (K): 5000K
  • Forward Voltage (Typical): 3.1V
  • Forward Current (Maximum): 100mA
  • Flux (Typical) @ Test Current: 23lm @ 60mA
  • Lumens/Watt: 124 lm/W
  • Color Rendering Index (CRI): 80
  • Thermal Resistance: 35°C/W
  • Package: Tape and Reel
  • Standard Package: 3,000
  • Size: 0.118" L x 0.055" W (3.00mm x 1.40mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • Product Status: Obsolete
