Same model may have multiple batches, images only for reference.

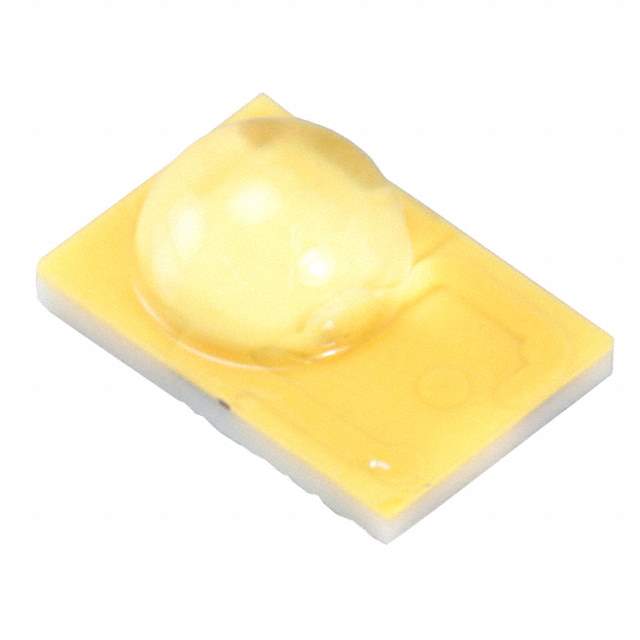

LXA7-PW57 Real Image
Same model may have multiple batches, images only for reference.

LXA7-PW57

Part No LXA7-PW57
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5700K 3SMD  /  LED Lighting series White, Cool 5700K 5-Step MacAdam Ellipse 2.81V 700mA 120° 1812 (4532 Metric)
Datasheet
LXA7-PW57 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON R
Package Tape & Reel
Product Status Obsolete
Color White, Cool
CCT (K) 5700K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 220lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.81V
Lumens/Watt @ Current - Test 112 lm/W
CRI (Color Rendering Index) 70
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 6°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1417-1007-1-ND,1417-1007-2-ND,1417-1007-1,1417-1007-2,1416-1007-1,1417-1007-6-ND,1416-1007-2,1416-1007-6,1417-1007-6
Standard Package 1,000
Win Source Part Number 1140128-LXA7-PW57
Ultra Librarian 3D Model Ultra Librarian LXA7-PW57 CAD Model

Description

The Lumileds 1140128-LXA7-PW57 is a white, cool LED that belongs to the LUXEON R series.

  • Color: White, Cool
  • Forward Voltage: 2.81V
  • Maximum Current: 1A
  • Viewing Angle: 120°
  • CCT: 5700K 5-Step MacAdam Ellipse
  • Flux: 220lm @ 85°C and 700mA
  • Thermal Resistance: 6°C/W
  • Package: 1812 (4532 Metric)
  • Mounting Technology: SMD (SMT)
  • Lead-Free: Yes
  • RoHS Compliant: Yes
