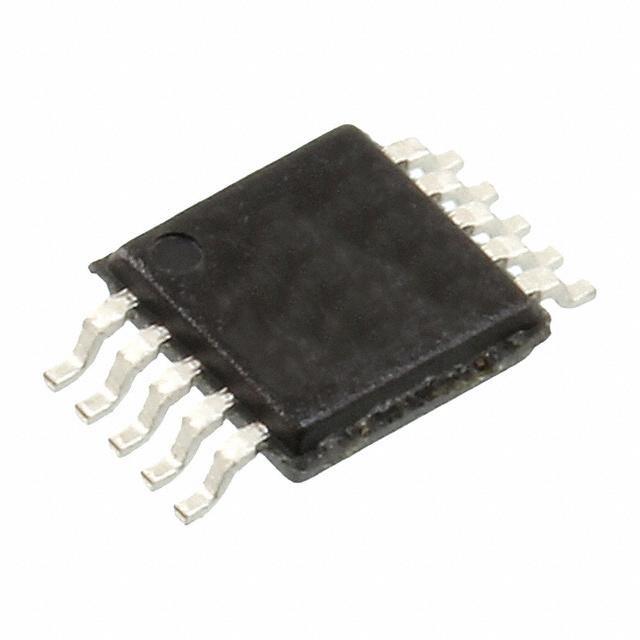

MASWSS0169TR M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MASWSS0169TR

Part No MASWSS0169TR
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description GAAS HIGH ISOLATION SWITCH DC - 3.0 GHZ / SWITCH GAAS 3GHZ SW-439LF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Part Status Active
Frequency - Lower DC
Frequency - Upper 3GHz
Isolation @ Frequency 33dB @ 3GHz (typ)
Insertion Loss @ Frequency 0.8dB @ 3GHz
Topology Reflective
Circuit SPDT
P1dB 28dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type Cellular
Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-MSOP
Win Source Part Number MASWSS0169TR-3000-207810
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Introduction Date December 03, 2004
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MASWSS0169TR CAD Model

Description

MASWSS0169TR-3000-207810 is a reflective SPDT circuit with an impedance rating of 50 Ohm.

  • Frequency Range: DC to 3GHz
  • Isolation: 33dB @ 3GHz (typ)
  • Insertion Loss @ Frequency: 0.8dB @ 3GHz
  • P1dB: 28dBm
  • RF Type: cellular
  • Packaging: reel
  • Temperature Range: -40°C to 85°C
  • Product Status: active
  • Categorized Under: RF/IF and RFID
  • Supplier Device Package: 10-MSOP
  • Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Introduction Date: December 03, 2004
  • Estimated EOL Date: obsolete/end of life
  • Win Source Part Number: MASWSS0169TR-3000-207810
