Same model may have multiple batches, images only for reference.

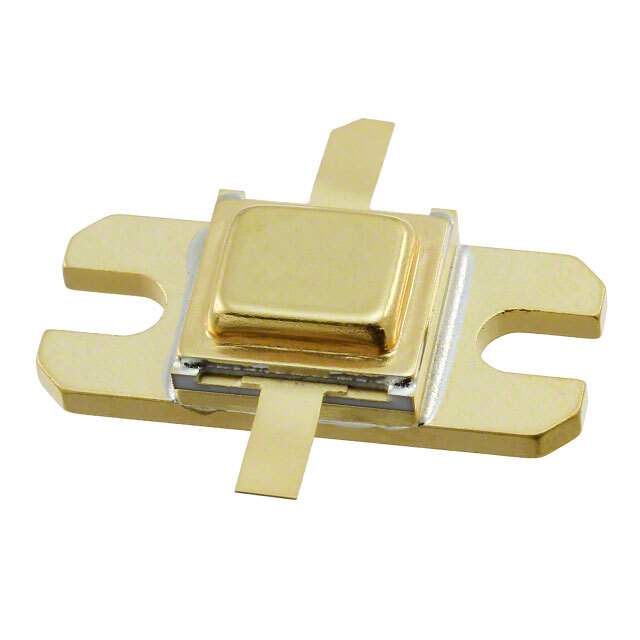

PH1090-175L Real Image
Same model may have multiple batches, images only for reference.

PH1090-175L

Part No PH1090-175L
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description RF TRANS NPN 80V / RF Transistor NPN 80V 10.5A 188W Chassis Mount
Datasheet
PH1090-175L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Manufacturer MACOM Technology Solutions
Packaging Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 80V
Gain 8.58dB
Power - Max 188W
Current - Collector (Ic) (Max) 10.5A
Temperature Range - Operating 200°C (TJ)
Mounting Chassis Mount
Base Product Number PH1090
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Other Part Number 1465-1193
Standard Package 20
Win Source Part Number 1325015-PH1090-175L
Ultra Librarian 3D Model Ultra Librarian PH1090-175L CAD Model

Description

The M/A-Com Technology Solutions 1325015-PH1090-175L is a discrete semiconductor product that belongs to the Transistors - Bipolar (BJT) - RF category.

  • Power - Max: 188W
  • Voltage - Collector Emitter Breakdown (Max): 80V
  • Current - Collector (Ic) (Max): 10.5A
  • Gain: 8.58dB
  • Transistor Type: NPN
  • Temperature Range: 200°C (TJ)
  • Manufacturer: M/A-Com Technology Solutions
