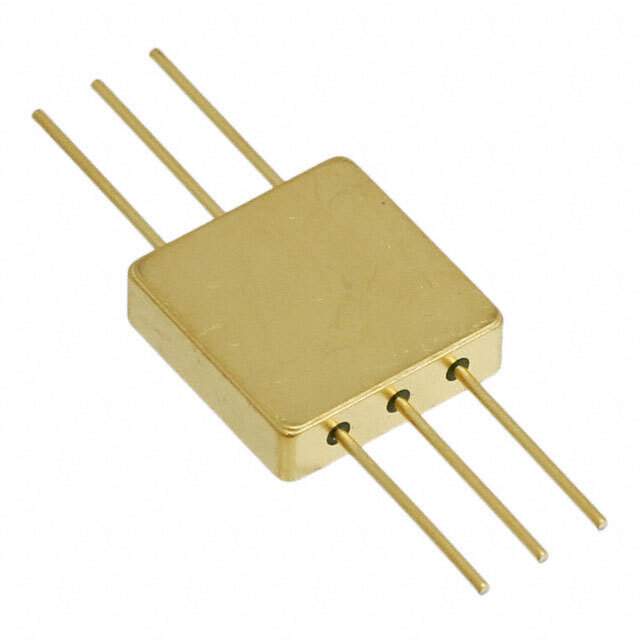

The TP-101-PIN is a PIN diode manufactured by M/A-Com Technology Solutions (now part of MACOM). PIN diodes are semiconductor devices used as switches or variable resistors at microwave and radio frequencies. The TP-101-PIN is designed for high-performance switching applications.

Applications

• RF and microwave switches
• Attenuators
• Phase shifters
• Limiters
• TR switches (Transmit-Receive)

Features

• Low insertion loss
• High isolation
• Fast switching speed
• Low capacitance
• Surface mount package

Benefits

• Excellent performance in RF and microwave switching applications
• Minimal signal loss
• Effective signal isolation
• Precise signal control
• Easy to integrate into circuit boards

Additional Details

The TP-101-PIN exhibits a low forward resistance and low reverse capacitance, making it ideal for high-frequency applications. The specific characteristics (e.g., forward resistance, reverse capacitance, switching speed) depend on the operating conditions (e.g., bias current, voltage). It is designed for operation across a wide range of frequencies, typically from VHF to microwave frequencies. The device is typically packaged in a small surface-mount package to minimize parasitic inductance and capacitance. Its operating temperature typically ranges from -55°C to +125°C.
