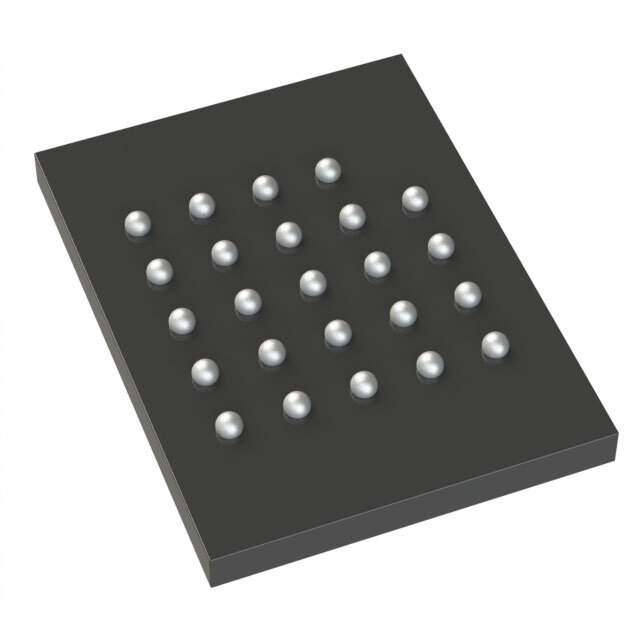

MX25LW51245GXDI00 Real Image
Same model may have multiple batches, images only for reference.

MX25LW51245GXDI00

Part No MX25LW51245GXDI00
Manufacturer Macronix
Catalog Memory
Description MEMORY / FLASH - NOR (SLC) Memory IC 512Mbit SPI - Octal I/O, DTR 133 MHz 5.2 ns 24-CSPBGA (6x8)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series OctaBus™
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR (SLC)
Memory Size 512Mbit
Memory Organization 64M x 8, 512M x 1
Memory Interface SPI - Octal I/O, DTR
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 750µs
Access Time 5.2 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-TBGA, CSPBGA
Supplier Device Package 24-CSPBGA (6x8)
Standard Package 480
MSL Level 3 (168 Hours)
Win Source Part Number 1350978-MX25LW51245GXDI00
Ultra Librarian 3D Model Ultra Librarian MX25LW51245GXDI00 CAD Model

Description

The MX25LW51245GXDI00 is a 512Mbit flash memory IC that uses NOR technology. This IC is part of the OctaBus™ series from Macronix.

  • Memory Size: 512Mbit
  • Technology: NOR Flash
  • Clock Frequency: 133 MHz
  • Write Cycle Time: 750µs
  • Interface: SPI with Octal I/O and DTR
  • Access Time: 5.2 ns
  • Voltage Supply: 2.7V to 3.6V
  • Mounting Type: Surface Mount
  • Package: 24-TBGA, CSPBGA
  • Memory Format: FLASH
  • Memory Organization: 64M x 8, 512M x 1
  • Suitable for: Consumer Electronics, Automotive, and Industrial Applications
