Same model may have multiple batches, images only for reference.

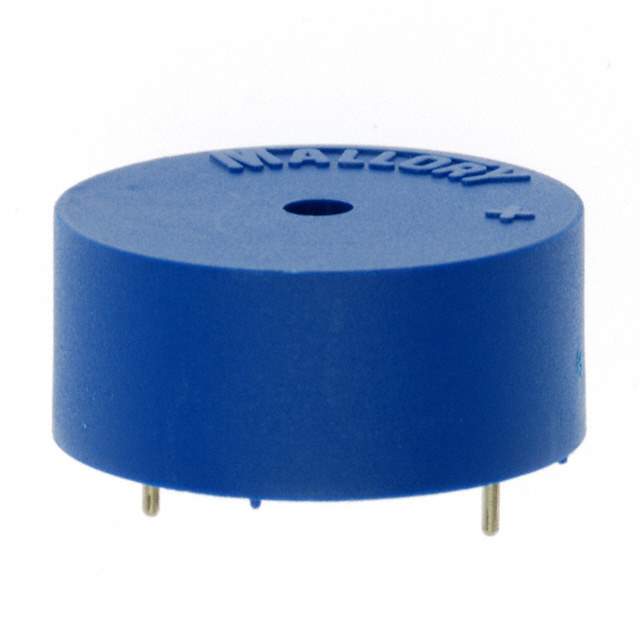

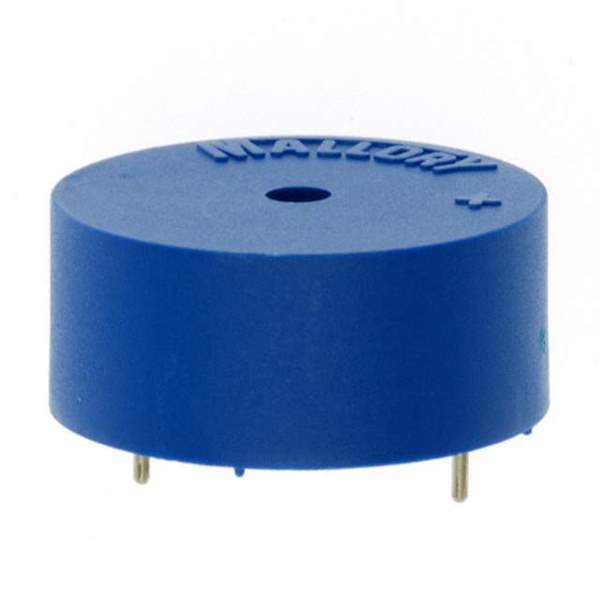

MSR320R Real Image
Same model may have multiple batches, images only for reference.

MSR320R

Part No MSR320R
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO INDICATOR 3-20V TH
Datasheet
MSR320R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Packaging Bulk
Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 3 to 20V
Frequency 3.5kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 73dB @ 3V, 30cm
Operating Supply Current 3 to 16mA
Port Location Top
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Termination PC Pins
Height - Seated (Max) 0.421" (10.70mm)
Win Source Part Number 1101801-MSR320R
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian MSR320R CAD Model

Description

The Mallory Sonalert Products Inc. MSR320R is a piezo audio product that is designed to be used in a variety of applications.

  • Frequency: 3.5kHz
  • Operating Mode: Single Tone
  • Voltage Range: 3 to 20V
  • Mounting Type: Through-Hole
  • Sound Pressure Level (SPL): 73dB @ 3V, 30cm
  • Operating Supply Current: 3 to 16mA
  • Operating Temperature Range: -40°C to 85°C
  • Package: Bulk
