Same model may have multiple batches, images only for reference.

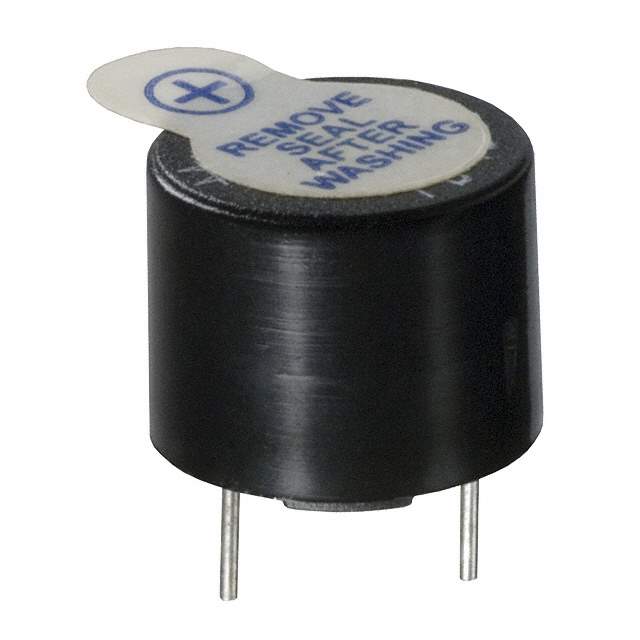

PB-12N23P-05Q Real Image
Same model may have multiple batches, images only for reference.

PB-12N23P-05Q

Part No PB-12N23P-05Q
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC INDICATOR 4-7V TH / Audio Indicator Piezo 4VDC 7VDC 30mA 5VDC 85dBA 1900Hz to 2700Hz Through Hole Pin Tube
Datasheet
PB-12N23P-05Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Series PB
Packaging Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Rating DC 5V
Voltage Range 4 ~ 7V
Frequency 2.3kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Operating Supply Current 30mA
Port Location Top
Operating Temperature Range -20°C ~ 70°C
Ratings Washable
Mounting Style Through Hole
Termination PC Pins
Dimension 0.472" Dia (12.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Win Source Part Number 777845-PB-12N23P-05Q
Popularity Medium
Supply and Demand Status Limited
Quantity per package 40
Family Name PB-12N23P-05Q
Introduction Date March 12, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PB-12N23P-05Q CAD Model

Description

The Mallory Sonalert PB-12N23P-05Q is a through-hole magnetic audio indicator with a frequency of 2.3kHz and a sound pressure level of 85dB at 5V, 10cm.

  • Frequency: 2.3kHz
  • Sound Pressure Level: 85dB @ 5V, 10cm
  • Input Type: DC
  • Voltage Range: 4-7V
  • Driver Circuitry: Internally driven
  • Operating Mode: Single tone
  • Dimensions: 0.472" Dia (12.00mm)
  • Height: 0.402" (10.20mm)
  • Washable: Yes
  • Voltage Rating: 5V
  • Packaging: Bulk
  • Popularity: Medium
