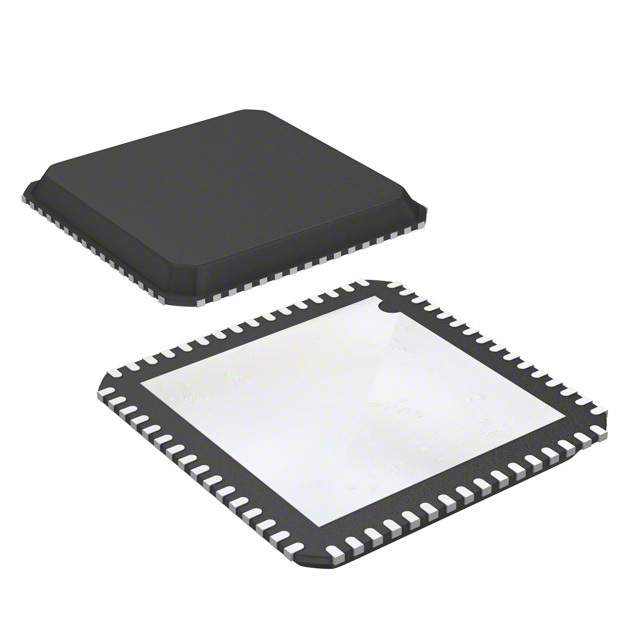

The 71M6521DE-IM/F from Maxim Integrated is a highly integrated, single-phase, multi-function energy metering IC designed to meet the stringent requirements of residential and commercial metering applications. It is part of Maxim's 71M65xx family of energy meter ICs, which are renowned for their accuracy, reliability, and ease of use.

Key Features

• High Accuracy: This IC is designed to achieve high-accuracy energy measurement with less than 0.1% error over a 1000:1 dynamic range, making it suitable for billing purposes in various markets.
• Integrated Processor: It includes an integrated 8051-compatible MPU core, 32-bit compute engine, and RTC for versatile and powerful processing capabilities.
• Low Power: The 71M6521DE-IM/F is optimized for low-power operation, which is essential for reducing the overall energy consumption of the metering system.
• On-Chip Flash Memory: With its on-chip flash memory, the device allows for easy firmware updates and customization, ensuring future-proofing and adaptability to changing standards or requirements.
• Multi-Function Sensor Inputs: The IC supports multiple sensor inputs, including current transformers and Rogowski coil sensors, providing flexibility in meter design.
• Communication Interface: It features a robust serial communication interface for easy data transfer to external devices or systems, facilitating integration into smart grid infrastructure.

Applications

The 71M6521DE-IM/F is ideal for a variety of metering applications, including:

• Residential energy meters
• Commercial energy meters
• Industrial energy meters
• Smart metering systems
• Energy management systems

With its advanced features and proven reliability, the 71M6521DE-IM/F from Maxim Integrated is a smart choice for any energy metering solution, offering precision, versatility, and ease of integration to meet the evolving demands of energy measurement technology.
