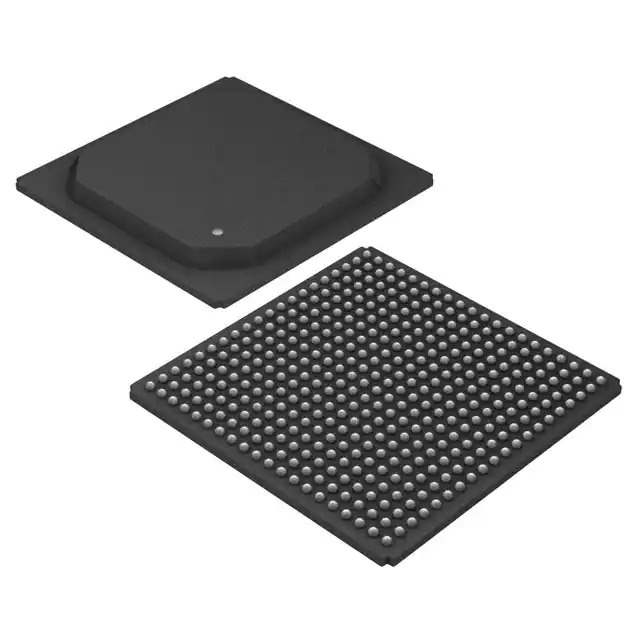

The Maxim Integrated DS3184 is a highly integrated, quad-channel transceiver designed for T1/E1/J1 applications. This advanced transceiver offers a complete solution for transmitting and receiving T1 (1.544Mbps), E1 (2.048Mbps), or J1 (1.544Mbps Japanese standard) signals. Each of the four channels operates independently, allowing for a versatile and flexible system design.

Key Features:

• Multi-Channel Support: The DS3184 supports four independent T1/E1/J1 channels, making it ideal for high-density telecommunications applications.
• Integrated Jitter Attenuator: An on-chip jitter attenuator improves signal integrity, ensuring reliable communication even in challenging environments.
• Flexible Interface: The device offers both serial and parallel interfaces for easy integration with a wide range of system architectures.
• Programmable Features: Programmable features include line build-out, pulse shape, receiver sensitivity, and transmitter output levels, allowing for customization to specific application requirements.
• Low Power Consumption: Designed with power efficiency in mind, the DS3184 is suitable for power-sensitive applications.

Applications:

• Telecommunications Infrastructure
• Wireless Base Stations
• Network Routers and Switches
• Digital Cross-Connect Systems
• Channel Service Units/Data Service Units (CSU/DSU)

The DS3184 transceiver is a critical component for network infrastructure, providing robust performance and reliability. Its compact form factor and integration of multiple channels onto a single chip make it an economical choice for system designers looking to maximize functionality while minimizing space and cost.

With Maxim Integrated's commitment to quality and long-term reliability, the DS3184 is a trusted solution for T1/E1/J1 communication needs, ensuring that your telecommunications systems maintain peak performance and connectivity.
