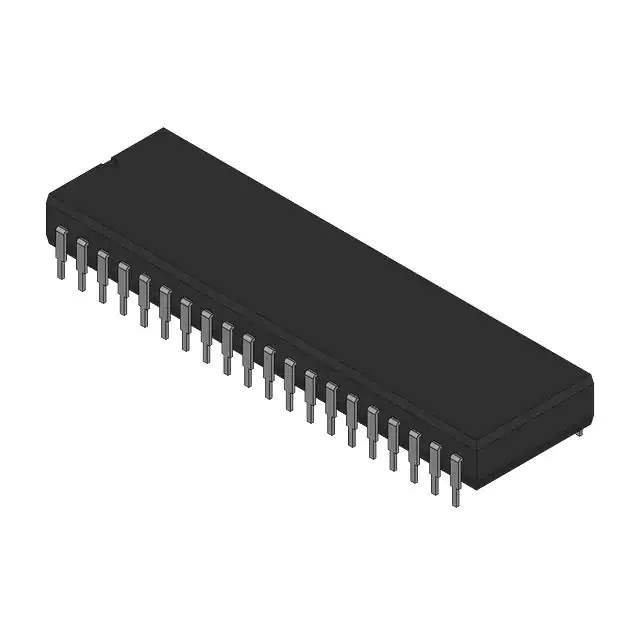

Maxim Integrated DS5000-8-8 Secure Microcontroller

The DS5000-8-8 is a highly secure microcontroller designed by Maxim Integrated, tailored for applications that demand stringent security measures to protect sensitive data. This microcontroller integrates 8KB of nonvolatile SRAM and 8KB of ROM, making it an ideal solution for applications in financial systems, access control, secure communications, and industrial control systems.

With its built-in security features, the DS5000-8-8 ensures that data is protected from both physical and electronic threats. The microcontroller's memory is partitioned into segments that can be individually write-protected, read-protected, or both, providing granular control over data access. Additionally, a rapid zeroization feature allows sensitive data to be erased quickly in the event of a security breach.

The DS5000-8-8 operates at a wide voltage range of 4.75V to 5.25V and is designed with a clock speed of 32.768 kHz to 24 MHz, which allows for flexible power management and compatibility with a variety of peripheral devices. Its architecture is based on an 8051-compatible core, ensuring ease of integration for developers familiar with the popular 8051 family of microcontrollers.

Key features of the DS5000-8-8 include:

• 8KB of nonvolatile SRAM
• 8KB of ROM
• Flexible memory partitioning with security protection
• Software-controllable clock frequency
• Two full-duplex serial ports
• Three timer/counters
• Watchdog timer for system reliability
• 32 I/O pins
• 100-year data retention

Developers can also benefit from the in-system programmability of the DS5000-8-8, which allows for firmware updates and application modifications without the need for external programming devices. This feature, combined with its robust security framework, makes the DS5000-8-8 a versatile and secure choice for mission-critical applications where data integrity and confidentiality are paramount.
