Maxim Integrated's MAX14680EWC+T Overvoltage Protector

The MAX14680EWC+T from Maxim Integrated is a highly sophisticated overvoltage protection device designed to safeguard sensitive electronics against voltage spikes and surges that can occur in various applications. This component is particularly crucial in preserving the integrity of portable devices, where power stability can be a significant concern.

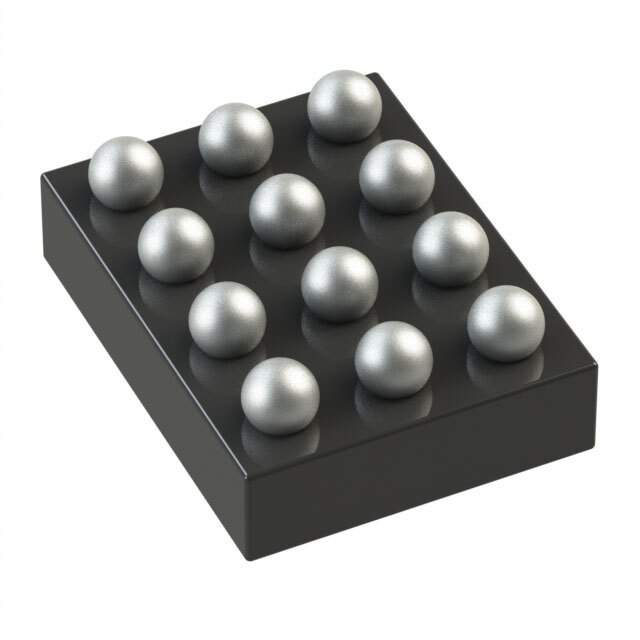

With its compact form factor, the MAX14680EWC+T comes in a 12-bump wafer-level package (WLP) with a 1.63mm x 2.03mm dimension, making it an ideal solution for space-constrained applications. This small size does not compromise its performance, as it can handle a continuous operating voltage range from 3.5V to 36V, ensuring versatility across different voltage requirements.

One of the standout features of the MAX14680EWC+T is its low quiescent current, which is particularly beneficial for battery-powered devices, as it helps to prolong battery life. Additionally, the device boasts a fast response time to overvoltage events, providing quick and reliable protection when it's most needed.

The MAX14680EWC+T implements an overvoltage lockout (OVLO) feature, which disconnects the load from the power supply when the input voltage exceeds the user-selectable overvoltage threshold. This threshold can be set using external resistors, offering flexibility to tailor the protection to specific application needs. Moreover, the device also features an undervoltage lockout (UVLO) that ensures the device only operates within a safe voltage range.

This overvoltage protector is not just limited to handling overvoltage scenarios; it also has thermal shutdown protection to prevent damage from excessive heat. This multi-faceted approach to protection makes the MAX14680EWC+T a robust choice for applications such as smartphones, tablets, cameras, and GPS units, where reliability and durability are paramount.

In summary, Maxim Integrated's MAX14680EWC+T is a versatile, efficient, and reliable solution for overvoltage protection in a variety of electronic devices. Its small size, coupled with its strong protective features, makes it an essential component for any design where power supply anomalies pose a risk to device functionality and longevity.
