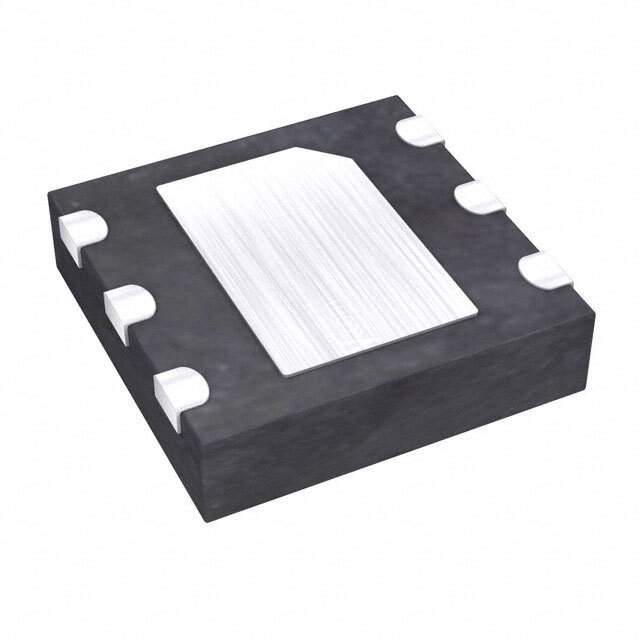

Maxim Integrated MAX1589AETT100+ Voltage Regulator

The Maxim Integrated MAX1589AETT100+ is a high-performance, fixed-frequency, step-down switching regulator that is designed to deliver a stable and efficient power supply. This compact regulator is part of Maxim's extensive line of power management solutions, catering to a wide range of applications including portable devices, networking equipment, and industrial systems.

Key Features

• Output Voltage: The MAX1589AETT100+ provides a fixed output voltage of 1.0V, which is ideal for low-voltage digital circuits and microprocessor cores.
• High Efficiency: With an efficiency rate that can reach up to 96%, this voltage regulator is designed to minimize power loss, making it suitable for battery-powered applications.
• Output Current: It can deliver up to 1.5A of continuous output current, ensuring sufficient power for demanding loads.
• Thermal Protection: The device includes thermal shutdown protection to prevent damage from overheating.
• Package: The MAX1589AETT100+ comes in a 6-pin thin SOT23 package, which is highly favored for its small footprint and ease of integration into space-constrained designs.
• Operating Frequency: The switching frequency is set at 1MHz, allowing the use of small, low-cost inductors and capacitors, which reduces the overall solution size and cost.

Applications

The MAX1589AETT100+ is versatile and can be used in a variety of applications, such as:

• Portable and battery-powered devices
• Wireless handsets and PDAs
• DSL modems
• Notebook computers
• Point-of-load power supplies

Additional Information

This regulator also features a low dropout operation, which ensures continued functionality even when the input voltage is close to the output voltage. Its fast transient response helps to maintain a stable output despite rapid changes in load, which is crucial for high-performance digital circuits. The MAX1589AETT100+ integrates several protection features including overcurrent protection and soft-start to reduce inrush current during startup.

For designers looking for a reliable and space-efficient voltage regulation solution, the Maxim Integrated MAX1589AETT100+ offers an excellent balance of performance, size, and ease of use.
