Maxim Integrated MAX17055EWL+ ModelGauge m5 EZ Fuel Gauge

The MAX17055EWL+ from Maxim Integrated is a compact, highly accurate fuel gauge IC designed to provide precise battery state-of-charge (SOC) monitoring for portable devices. Utilizing the innovative ModelGauge™ m5 EZ algorithm, it eliminates the need for battery characterization while offering a blend of high performance and ease of use. This makes it an ideal choice for a wide array of applications including smartphones, wearables, and smart IoT devices where battery life indication is critical.

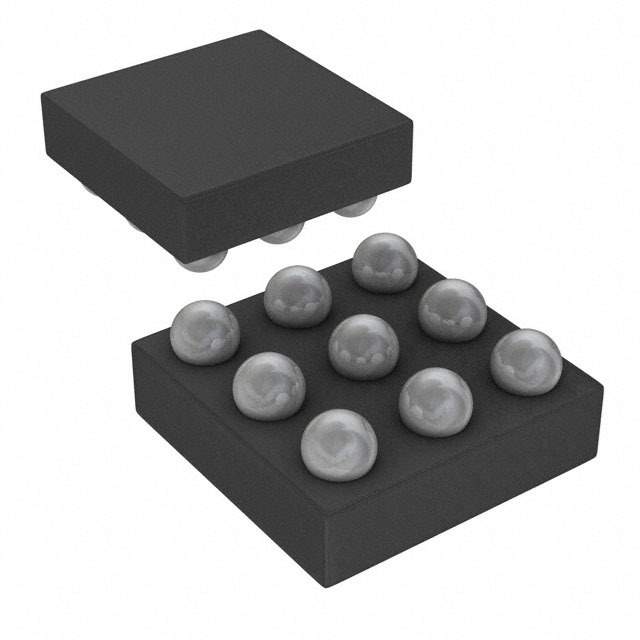

The MAX17055EWL+ operates over a wide voltage range of 2.7V to 4.5V, making it suitable for single-cell Li+ batteries and ensures compatibility with a variety of battery chemistries. The device is housed in a tiny, 1.4mm x 1.5mm, 9-pin WLP package, which allows for minimal footprint and easy integration into space-constrained designs.

One of the key features of the MAX17055EWL+ is its ModelGauge m5 EZ algorithm, which provides a robust SOC solution by combining the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge. This advanced algorithm also compensates for cell aging, temperature, and discharge rate, and requires no external sense resistor, further simplifying design and reducing overall cost.

Additionally, the MAX17055EWL+ offers I2C interface for communication with the host system, enabling easy access to the fuel gauge data. It also has configurable alert functions for SOC low, SOC change, and temperature thresholds, which can help extend the battery life of the end device by prompting power-saving measures when needed.

With its automatic black-box logging of system events, the MAX17055EWL+ helps in diagnosing battery and system behavior, which can be invaluable for product development and troubleshooting. Furthermore, it supports quick start-up and does not require an initial empty-to-full battery recharge, facilitating a smoother user experience.

In summary, the Maxim Integrated MAX17055EWL+ is a sophisticated, user-friendly fuel gauge IC that offers precise battery monitoring with minimal design effort, making it an excellent choice for designers looking to enhance the performance and reliability of their portable devices.
