The MAX1813EEI+ is an advanced, high-performance power-management IC from Maxim Integrated that is designed to cater to the needs of complex digital systems. This versatile component features an adjustable output voltage, making it suitable for a variety of applications, including computing devices, networking equipment, and industrial systems.

Key Features and Benefits

• Adjustable Output: The MAX1813EEI+ provides an adjustable output voltage range, which can be finely tuned to meet the specific requirements of the powered device, ensuring optimal performance and efficiency.
• High Efficiency: With its advanced design, this IC offers high efficiency, which translates to reduced heat generation and lower energy consumption, making it an eco-friendly choice for power-sensitive applications.
• Compact Footprint: The small form factor of the MAX1813EEI+ makes it an ideal solution for space-constrained applications, without compromising on power or functionality.
• Thermal Protection: The device includes built-in thermal protection features that prevent damage from overheating, thus ensuring long-term reliability and stability of the system it powers.
• Low Dropout Voltage: The low dropout voltage characteristic of this IC allows it to continue to regulate the output voltage even when the supply voltage is very close to the output voltage, which is crucial for battery-operated devices.

Applications

The MAX1813EEI+ is suited for a wide range of applications, including but not limited to:

• Notebook Computers
• Desktop Computers
• Servers
• Networking Equipment
• Portable and Battery-Powered Devices
• Industrial Control Systems

Technical Specifications

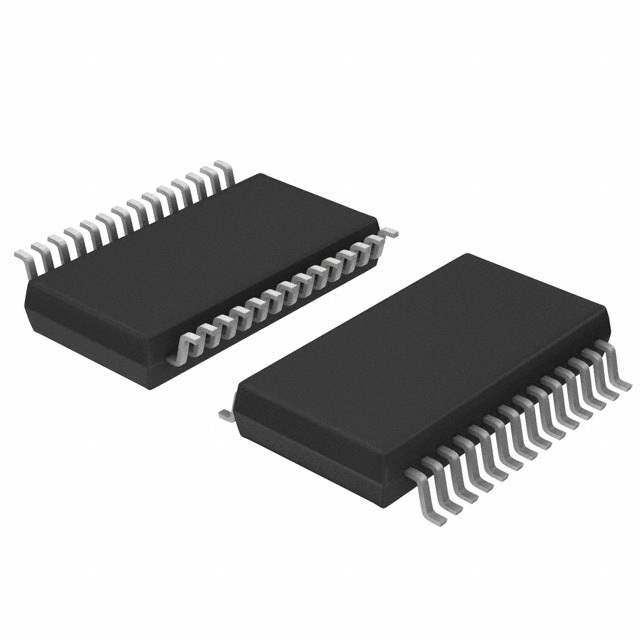

The MAX1813EEI+ is available in a QSOP-28 package and operates over a wide temperature range. It requires a minimum number of external components, which simplifies the design and reduces the overall bill of materials. The device is designed to be robust, with built-in short-circuit protection and a soft-start feature that minimizes inrush current during startup.

In summary, the MAX1813EEI+ from Maxim Integrated is a flexible and efficient power management solution that offers designers the ability to meet stringent power requirements of modern digital devices while maintaining a small footprint and high reliability.
