Maxim Integrated MAX1817EUB Overview

The MAX1817EUB from Maxim Integrated is a high-performance, low-dropout linear regulator designed for applications requiring precise voltage regulation and high power efficiency. This compact and efficient device is ideal for portable electronics, where extended battery life and consistent performance are paramount.

Key Features

• Adjustable Output: The output voltage of the MAX1817EUB can be adjusted from 1.25V to 5V, allowing for versatility in various applications.
• Low Dropout: It features a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage, which is critical for battery-powered devices.
• High Accuracy: The device maintains a high accuracy of ±1.5%, providing stable voltage to sensitive components.
• Power-Saving Modes: It includes a shutdown mode that reduces the quiescent current to less than 1µA, significantly extending battery life when the device is not in active use.
• Thermal Protection: The MAX1817EUB is equipped with thermal overload protection, safeguarding the device and the system from damage due to overheating.

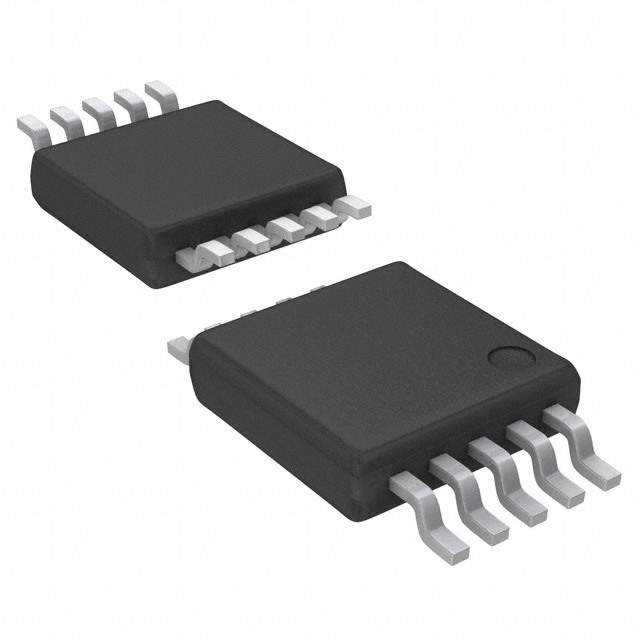

• Small Footprint: Packaged in a space-saving 10-pin µMAX package, it is suitable for space-constrained applications.

Applications

The MAX1817EUB is versatile and can be used in a variety of applications, including but not limited to:

• Portable and battery-powered devices
• Notebook computers
• Cellular phones
• Handheld instruments
• PDAs and mobile communication devices

Reliability and Support

Maxim Integrated is known for its commitment to quality and reliability, and the MAX1817EUB is no exception. With technical support and comprehensive documentation available, designers can confidently integrate this regulator into their systems, ensuring a reliable and efficient power management solution.
