Maxim Integrated's MAX1976AETT120+T: Precision Voltage Regulator

The MAX1976AETT120+T from Maxim Integrated is a high-performance, low-dropout linear regulator (LDO) specifically designed to deliver a well-regulated power supply for sensitive electronic circuits. This component is ideal for applications requiring a stable and clean voltage source, such as precision instrumentation, data acquisition systems, and high-end audio equipment.

With an impressive dropout voltage of just 120mV at a 500mA load, the MAX1976AETT120+T ensures efficient operation even in low headroom conditions. This characteristic is particularly beneficial for battery-powered devices, where maximizing the energy use is critical. The device operates over a wide range of input voltages from 2.5V to 6.5V, making it versatile for various power supply configurations.

The output voltage of this LDO is fixed at 1.2V, providing a precise reference for digital and analog circuits that require a consistent power level. The MAX1976AETT120+T can supply up to 500mA of output current, which is sufficient for many small to medium power applications. Additionally, the low output noise of just 30µV RMS and the high power supply rejection ratio (PSRR) contribute to the excellent stability of the output voltage under varying load and input conditions.

One of the key features of the MAX1976AETT120+T is its thermal protection mechanism, which safeguards the device and the application from damage due to overheating. The built-in over-temperature shutdown function automatically turns off the regulator if the internal temperature exceeds safe operating limits.

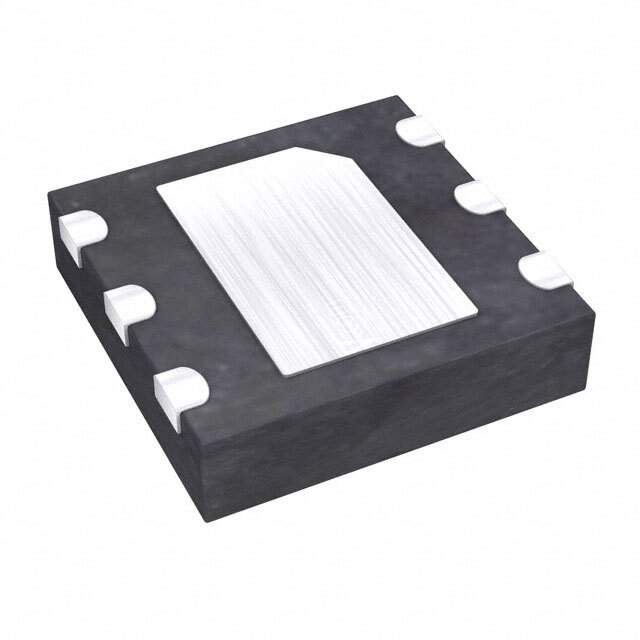

The device is packaged in a compact 6-pin TDFN (3mm x 3mm) with an exposed pad, which not only saves valuable board space but also provides enhanced thermal dissipation. The MAX1976AETT120+T is also RoHS compliant, ensuring it meets the latest environmental standards for electronic components.

Overall, the MAX1976AETT120+T is a reliable and efficient solution for applications demanding high precision and stability in their power supply. Its combination of low dropout, high accuracy, and thermal protection makes it a top choice for designers looking to enhance the performance of their electronic systems.
