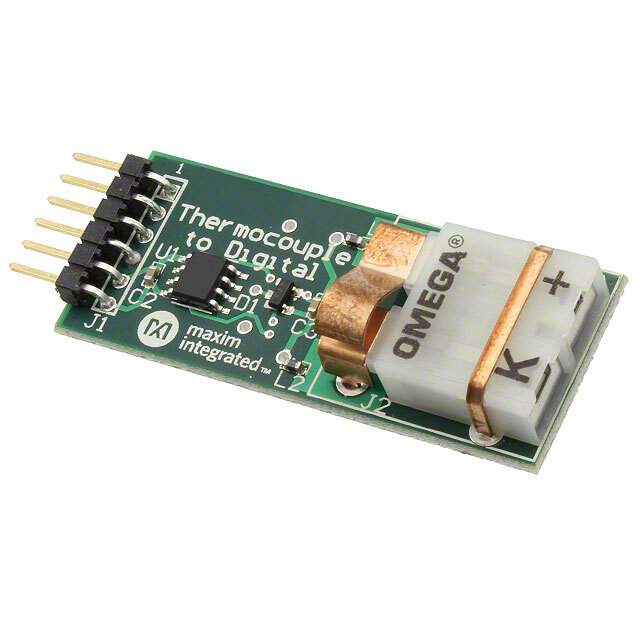

The MAX31855PMB1# is a sophisticated thermocouple-to-digital converter module from Maxim Integrated, designed to provide a complete solution for temperature measurement applications. This high-accuracy module is compatible with K-Type thermocouples and is capable of detecting a wide range of temperatures from -200°C to +1350°C with an accuracy of ±2°C. Its ability to directly convert the thermocouple's millivolt output into degree Celsius makes it an ideal choice for a variety of industrial and consumer applications.

This compact module includes an integrated cold junction compensation, which accounts for changes in the temperature at the thermocouple's reference junction, ensuring precise temperature readings under varying environmental conditions. The MAX31855PMB1# communicates with microcontrollers and other digital devices through a simple SPI interface, which provides easy integration into existing systems.

Key features of the MAX31855PMB1# include:

• Simple SPI-compatible interface for easy communication with host devices.
• 14-bit, 0.25°C resolution for accurate temperature readings.
• Integrated cold-junction compensation for improved accuracy.
• Detects thermocouple faults such as open circuits, short circuits to GND, and short circuits to VCC for enhanced safety and reliability.
• Operating voltage range from 3.0V to 3.6V, making it suitable for low-voltage applications.
• Compact form factor for space-constrained applications.

Whether you are developing high-precision industrial temperature control systems, consumer appliances, or any application requiring reliable temperature measurement, the MAX31855PMB1# is an excellent choice. It delivers the accuracy, reliability, and ease of use that engineers and designers expect from Maxim Integrated products. The module's robust design ensures long-term stability and performance, making it a trusted component in your temperature sensing solutions.

For detailed specifications, application notes, and support resources, visit Maxim Integrated's official website or consult the MAX31855PMB1# datasheet.
