The MAX3761EEP, a state-of-the-art laser diode driver from Maxim Integrated, is engineered to meet the demanding requirements of high-speed fiber optic communication systems. This advanced component is designed to deliver exceptional performance for applications such as Gigabit Ethernet, Fibre Channel, and other high-speed data transmission protocols that rely on optical signals.

Key Features

• High-Speed Operation: The MAX3761EEP is capable of modulation speeds up to 2.5Gbps, making it suitable for a variety of high-speed optical networks.
• Adjustable Modulation and Bias Currents: Users can set the laser diode's bias and modulation currents via external resistors, allowing for precise control over the optical output.
• Automatic Power Control (APC) Loop: This feature maintains constant optical power output from the laser diode, compensating for temperature and aging effects.
• Low Power Dissipation: The device operates with reduced power consumption, which is critical for maintaining the reliability and longevity of high-speed communication systems.
• Single 3.3V Power Supply: The MAX3761EEP operates from a single 3.3V supply, simplifying power management in system design.

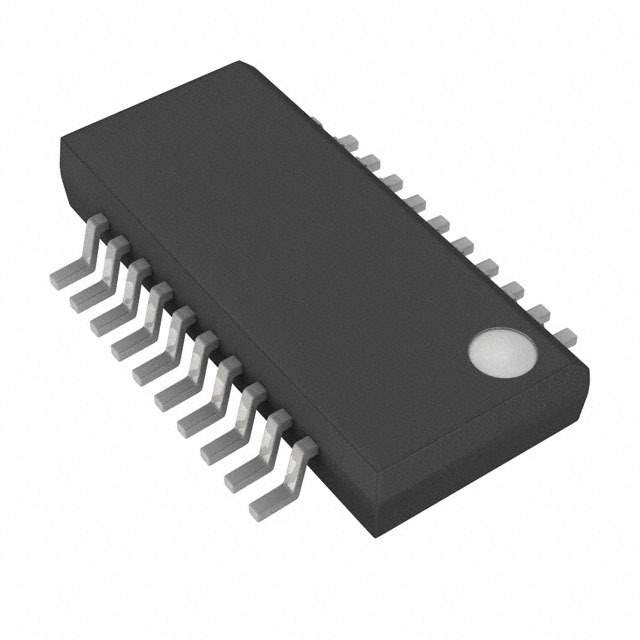

• Small Package Size: Housed in a compact 20-pin QSOP package, the MAX3761EEP saves valuable board space in dense optical modules.

Applications

The versatility of the MAX3761EEP makes it an ideal choice for a wide range of applications, including:

• Gigabit Ethernet Transceivers
• Fibre Channel Transceivers
• SONET/SDH Equipment
• High-Speed Datacom and Telecom Equipment

Technical Specifications

The device boasts a differential PECL data input interface, fast rise and fall times, and an integrated waveform-shaping circuitry that ensures clean and compliant eye diagrams for the transmitted optical signal. The MAX3761EEP's integrated safety features, such as the transmit disable function and the threshold for APC loop stability, provide additional reliability for sensitive optical communications systems.

For engineers and system designers seeking a reliable and high-performing laser diode driver, the MAX3761EEP by Maxim Integrated offers a compelling solution that enhances the performance and stability of fiber optic communication systems.
