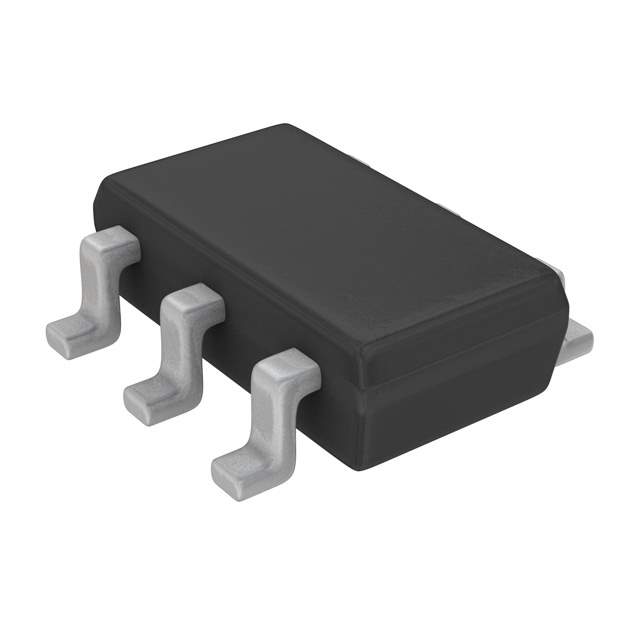

Maxim Integrated MAX5435LEZT+T Digital Potentiometer

The MAX5435LEZT+T is a high-precision digital potentiometer designed by Maxim Integrated, a brand renowned for its innovative and reliable integrated circuits. This digital potentiometer offers a versatile solution for applications requiring variable resistance adjustments, all controlled via a digital interface.

This particular model features a single potentiometer with a linear taper, providing a smooth transition between resistance values. The device operates over a wide voltage range of 2.7V to 5.5V, making it suitable for both low-voltage and standard applications. The MAX5435LEZT+T comes with an end-to-end resistance of 50kΩ, which can be adjusted through its 256-tap point settings, allowing for fine-grained control over the resistance value.

The digital potentiometer is equipped with an I²C-compatible serial interface, enabling easy communication with microcontrollers or other digital systems. This interface allows for the potentiometer to be programmed without the need for any additional signal lines, simplifying the design and reducing the number of required I/O pins on the controlling device.

With its compact SOT-23 package, the MAX5435LEZT+T is ideal for space-constrained applications. It is commonly used in various electronic systems, including audio control, calibration of system tolerances, LCD screen adjustment, and other scenarios where digital control of resistance is essential.

Additional features of the MAX5435LEZT+T include non-volatile memory (EEPROM), which ensures that the last programmed resistance value is retained even after power is removed. This is particularly useful in applications where the potentiometer setting must be maintained between power cycles. The device also offers a shutdown mode, which reduces power consumption when the potentiometer is not in use.

In summary, the Maxim Integrated MAX5435LEZT+T digital potentiometer is a versatile and reliable component that offers precise resistance adjustment through digital control, making it an excellent choice for a wide range of electronic applications.
