Maxim Integrated MAX7325AEG Product Overview

The MAX7325AEG from Maxim Integrated is a sophisticated port expander designed to provide seamless interfacing for microcontrollers via the I²C-compatible serial interface. This device is particularly useful in applications where additional I/O ports are required, making it an ideal choice for expanding the capabilities of limited microcontroller units (MCUs).

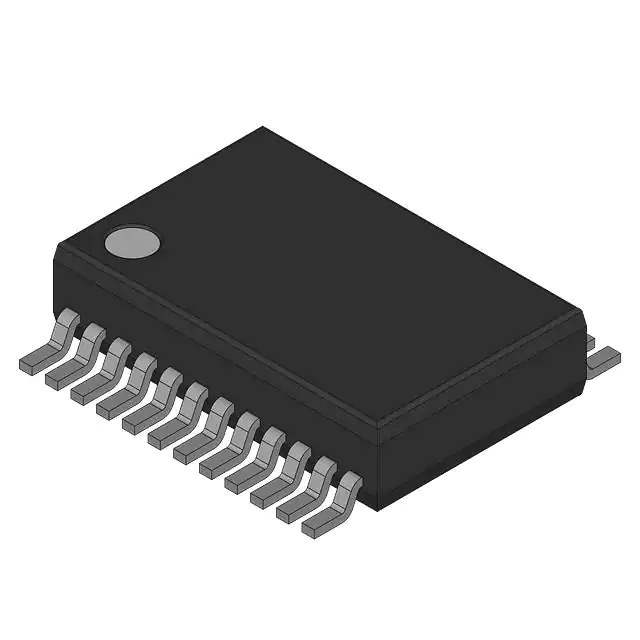

Encased in a compact 24-pin SSOP package, the MAX7325AEG offers a versatile solution for systems that demand low-power and low-voltage operation. It operates within a voltage range of 1.71V to 5.5V, catering to a broad spectrum of power requirements and ensuring compatibility with both 3.3V and 5V logic levels.

One of the standout features of the MAX7325AEG is its built-in level shifting. This functionality allows it to interface with MCUs of different logic levels without the need for external level shifters, simplifying design and reducing component count. The device also boasts overvoltage protection up to 6V, which provides an extra layer of safety for your system, guarding against potential damage from voltage spikes.

The MAX7325AEG is designed with 8 ports, which can be configured as inputs or outputs. This flexibility makes it highly adaptable to various application needs. For outputs, the device provides strong drive capability with 25mA sink and source current, enabling direct drive of LEDs or other peripherals that require higher current.

Furthermore, the MAX7325AEG features built-in pull-up resistors for the I²C bus lines, simplifying the interface and minimizing the need for additional external components. The device also supports hot insertion, which allows it to be added to a system without needing to power down, enhancing serviceability and reducing downtime.

Whether you're designing consumer electronics, industrial control systems, or any application that requires additional I/O ports, the Maxim Integrated MAX7325AEG provides a reliable and efficient solution for expanding your system's capabilities while maintaining a small footprint and low power consumption.
