Maxim Integrated's MAX782CBX Power Supply Controller

The MAX782CBX from Maxim Integrated is a high-performance, multi-phase, synchronous buck power supply controller designed to deliver precise voltage regulation and high efficiency for advanced microprocessors. This power controller is an ideal solution for systems that require a reliable and efficient power supply, such as servers, workstations, and high-end desktop computers.

Featuring a proprietary multi-phase buck topology, the MAX782CBX is capable of reducing input ripple current and output voltage ripple, which results in improved system performance and reduced component size. The device's multi-phase operation not only enhances efficiency but also enables the use of smaller and lower cost capacitors and inductors compared to single-phase solutions.

The MAX782CBX is equipped with a high-speed, 5-bit digital-to-analog converter (DAC) that allows for a precise output voltage setting. This DAC is compatible with the VID codes issued by the latest microprocessors, ensuring that the output voltage can be adjusted dynamically in response to CPU load variations. This dynamic voltage adjustment helps to optimize system power consumption and thermal management.

With its integrated high-current drivers, the MAX782CBX can directly drive N-channel MOSFETs, which are known for their low on-resistance and high efficiency. The controller also features Maxim's proprietary Quick-PWM™ quick-response, constant-on-time PWM control scheme that handles wide input/output voltage ratios with ease and provides a near-instantaneous response to load transients.

Additional features of the MAX782CBX include programmable soft-start, overvoltage protection, and thermal shutdown. The overvoltage protection circuitry ensures that the output voltage does not exceed a safe threshold, thereby protecting the microprocessor and other sensitive components from potential damage. In the event of an over-temperature condition, the thermal shutdown feature will turn off the controller to prevent overheating.

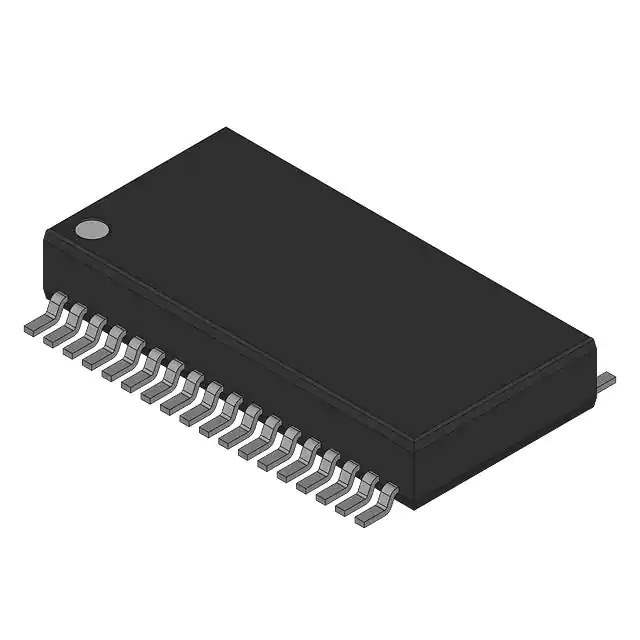

The MAX782CBX comes in a compact 36-pin SSOP package, making it suitable for space-constrained applications. Its robust design and comprehensive feature set make it a versatile choice for designers looking to implement a reliable power supply in their next-generation computing systems.
