Maxim Integrated MAX9026EBT+T Voltage Comparator

The MAX9026EBT+T from Maxim Integrated is a high-performance, low-power voltage comparator that is ideal for a variety of applications where precision voltage comparison is critical. This tiny, single comparator is designed to operate from a single +2.5V to +5.5V supply or a dual ±1.25V to ±2.75V supply, making it versatile for both portable and fixed power supply designs.

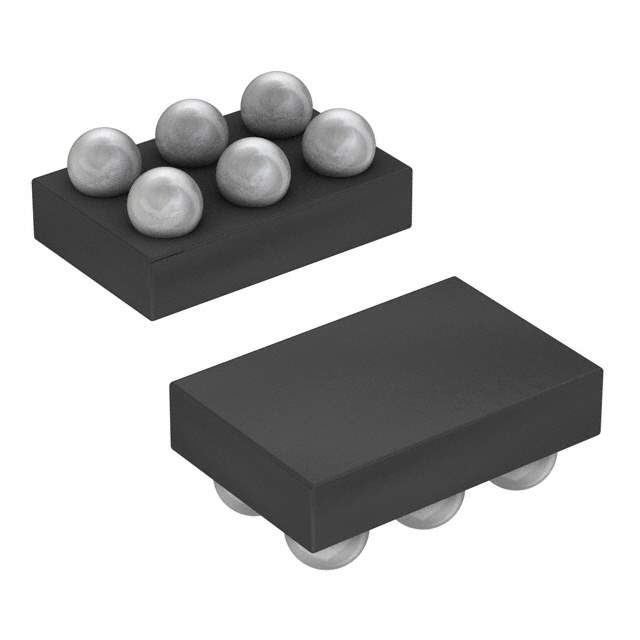

The device features a typical propagation delay of just 4μs and a low quiescent current of 9μA, which is particularly beneficial for battery-powered applications where power efficiency is paramount. The MAX9026EBT+T comes in an ultra-small, 6-pin thin SOT23 package, which is ideal for space-constrained applications.

Key features of the MAX9026EBT+T include:

• Wide supply voltage range: +2.5V to +5.5V or ±1.25V to ±2.75V
• Low power consumption: 9μA quiescent current
• Fast response time: 4μs propagation delay
• Internal hysteresis for clean switching
• Push-pull TTL/CMOS-compatible output
• Operating temperature range: -40°C to +125°C
• Ultra-small 6-pin thin SOT23 package

The device is designed for use in a range of applications, including battery monitoring, threshold detection, level shifting, and window comparators. Its internal hysteresis ensures clean switching even with slow-moving input signals, which helps to prevent output oscillations and provides stable operation.

The MAX9026EBT+T voltage comparator is a testament to Maxim Integrated's commitment to delivering high-quality, reliable components that meet the stringent requirements of modern electronic designs. Whether it's for industrial, automotive, or consumer electronics, this comparator offers a compact, efficient, and precise solution for voltage comparison tasks.

For designers and engineers looking for a voltage comparator that combines speed, precision, and power efficiency in a small footprint, the MAX9026EBT+T from Maxim Integrated is an excellent choice.
