Same model may have multiple batches, images only for reference.

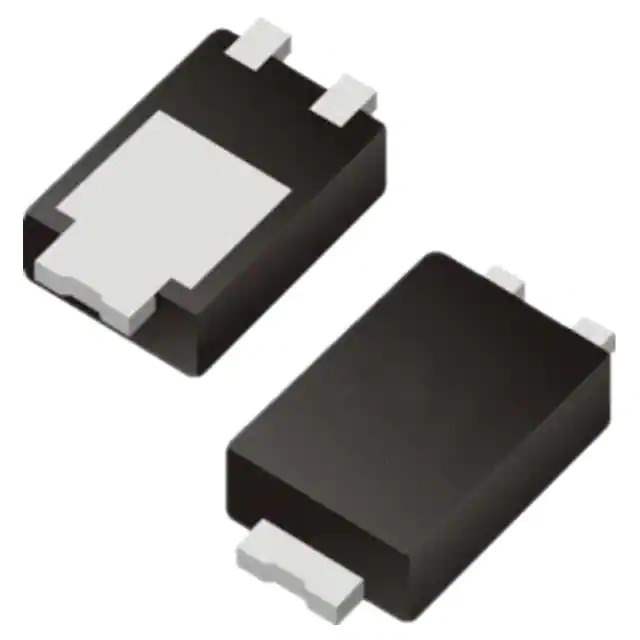

SB10100L Real Image
Same model may have multiple batches, images only for reference.

SB10100L

Part No SB10100L
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 10A
Datasheet
SB10100L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 100 V
Mounting Type Surface Mount
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 663717-SB10100L
Ultra Librarian 3D Model Ultra Librarian SB10100L CAD Model

Description

The 663717-SB10100L is a fast recovery Schottky diode designed for rectification applications.

  • Reverse Voltage: It has a maximum DC reverse voltage of 100V
  • Rectified Current: and an average rectified current of 10A, making it suitable for high-power applications.
  • Forward Voltage Drop: The 663717-SB10100L features a low forward voltage drop of 850mV @ 10A
  • Reverse Leakage Current: and a reverse leakage current of 300µA @ 100V.
  • Temperature Range: It operates in a temperature range of -55°C to 150°C
  • Packaging: and is supplied in tape and reel packaging, with a standard package of 10,000 pieces.
  • Manufacturer: This diode is an active product from MDD and is unaffected by REACH regulations.
  • Capacitance: The 663717-SB10100L does not have a specified capacitance value and is commonly used in surface mount applications.
