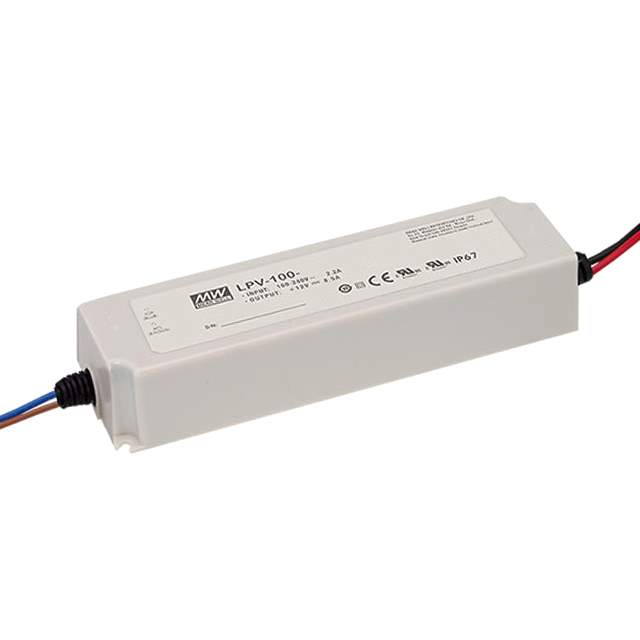

LPV-100-12 Real Image
Same model may have multiple batches, images only for reference.

LPV-100-12

Part No LPV-100-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CV AC/DC 12V 8.5A / 8.5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
LPV-100-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series LPV-100 (100W)
Package Box
Type Constant Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 12V
Current - Output (Max) 8.5A
Power (Watts) 102 W
Voltage - Isolation 3 kV
Features OCP, OVP
Ratings IP67
Temperature Range - Operating -25°C ~ 70°C
Efficiency 85%
Termination Style Wire Leads
Dimension 7.48" L x 2.05" W x 1.46" H (190.0mm x 52.0mm x 37.0mm)
Approval Agency CE, cURus
Mounting Type Chassis Mount
Base Product Number LPV-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-3284,LPV-100-12-ND
Standard Package 20
Win Source Part Number 1069371-LPV-100-12
Ultra Librarian 3D Model Ultra Librarian LPV-100-12 CAD Model

Description

The LPV-100-12 LED driver from MEAN WELL USA Inc. is a constant voltage type with a power output of 102W.

  • Features: OCP and OVP
  • Termination Style: wire leads
  • IP Rating: IP67
  • Voltage Output: 12V
  • Voltage Isolation: 3kV
  • Output Type: single
  • Maximum Current Output: 8.5A
  • Input Voltage: 90-264VAC
  • Efficiency: 85%
  • Mounting Type: chassis mountable
  • Temperature Range: -25°C to 70°C
