Same model may have multiple batches, images only for reference.

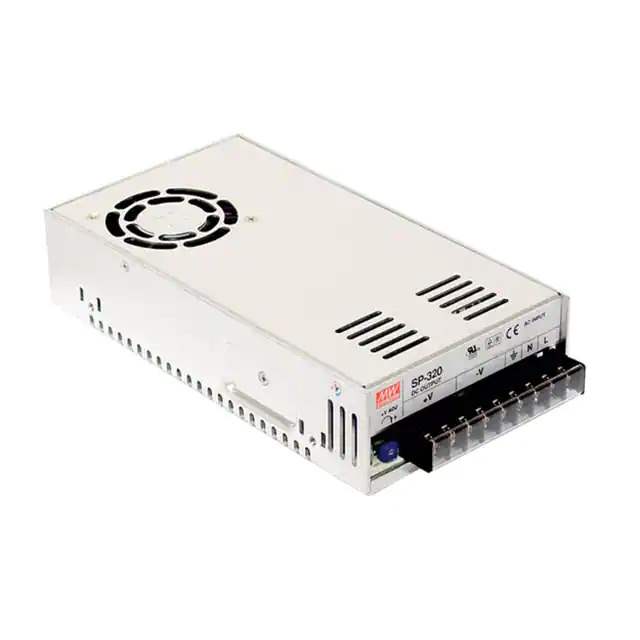

SP-320-24 Real Image
Same model may have multiple batches, images only for reference.

SP-320-24

Part No SP-320-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 312W
Datasheet
SP-320-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series SP-320 (320W)
Package Box
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 88 ~ 264 VAC, 124 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 13 A
Power (Watts) 312W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 87%
Temperature Range - Operating -20°C ~ 65°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm)
Approval Agency CB, CCC, CE, cURus, TUV
Minimum Load Required No
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Win Source Part Number 336896-SP-320-24
Ultra Librarian 3D Model Ultra Librarian SP-320-24 CAD Model

Description

The 336896-SP-320-24 is a 320W enclosed AC/DC converter from Mean Well Enterprises Co., Ltd.

  • Series: SP-320
  • Application: External/Internal power supplies in commercial applications
  • Output: Adjustable output
  • Features: Power factor correction (PFC), Universal input
  • Input Voltage: 88 to 264 VAC or 124 to 370 VDC
  • Output Voltage: 24V
  • Maximum Output Current: 13A
  • Power: 312W
  • Efficiency: 87%
  • Package Size: 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm)
  • Mounting: Chassis mount
  • Operating Temperature Range: -20°C to 65°C (with derating)
  • Approvals: CB, CCC, CE, cURus, and TUV
