Same model may have multiple batches, images only for reference.

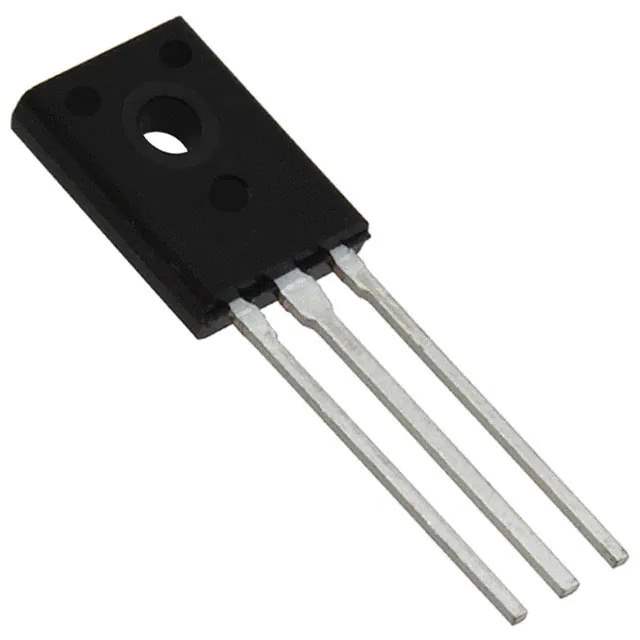

2SB1151-Y-BP Real Image
Same model may have multiple batches, images only for reference.

2SB1151-Y-BP

Part No 2SB1151-Y-BP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS PNP 60V 5A TO126
Datasheet
2SB1151-Y-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Bulk
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 5 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 300mV @ 200mA, 2A
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 2A, 1V
Power - Max 1.25 W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126
Base Product Number 2SB1151
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 850609-2SB1151-Y-BP
Ultra Librarian 3D Model Ultra Librarian 2SB1151-Y-BP CAD Model

Description

The 850609-2SB1151-Y-BP is a PNP bipolar transistor from Micro Commercial Co. It is designed for use in various electronic circuits that require a PNP transistor.

  • Transistor Type: PNP
  • Power - Max: 1.25 W
  • Voltage - Collector Emitter Breakdown (Max): 60 V
  • Current - Collector (Ic) (Max): 5 A
  • Vce Saturation (Max) @ Ib, Ic: 300mV @ 2A
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 2A, 1V
  • Mounting Type: Through Hole
  • Package / Case: TO-225AA
  • Operating Temperature: -55°C to 150°C
