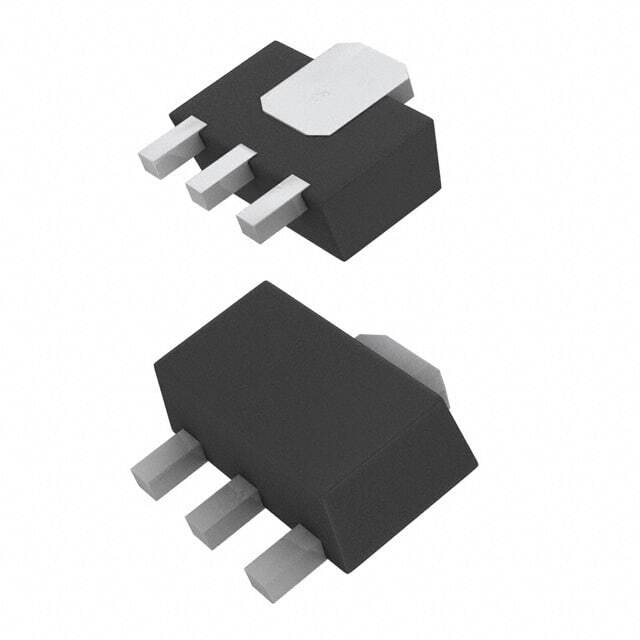

Same model may have multiple batches, images only for reference.
2SC4672-R-TP
Same model may have multiple batches, images only for reference.

2SC4672-R-TP

Part No 2SC4672-R-TP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 2A SOT89 / Bipolar (BJT) Transistor NPN 50 V 2 A 210MHz 500 mW Surface Mount SOT-89
Datasheet
2SC4672-R-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 2 A
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 350mV @ 50mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 180 @ 500mA, 2V
Power - Max 500 mW
Frequency - Transition 210MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number 2SC4672
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 855199-2SC4672-R-TP
Ultra Librarian 3D Model Ultra Librarian 2SC4672-R-TP CAD Model

Description

The 2SC4672-R-TP is a single NPN bipolar transistor from Micro Commercial Co. It is designed for general-purpose amplification and switching applications.

  • Package: TO-243AA (SOT-89)
  • Packaging: Tape and reel
  • Maximum Power Dissipation: 500mW
  • Collector-Emitter Breakdown Voltage (Vce): 50V
  • Maximum Collector Current (Ic): 2A
  • Saturation Voltage (Vce Saturation): 350mV @ a base current (Ib) of 50mA and collector current (Ic) of 1A
  • Collector Cutoff Current (ICBO): 100nA
  • DC Current Gain (hFE): 180 @ a collector current (Ic) of 500mA and collector-emitter voltage (Vce) of 2V
  • Product Status: Obsolete
  • Application: Suitable for replacement in existing designs
