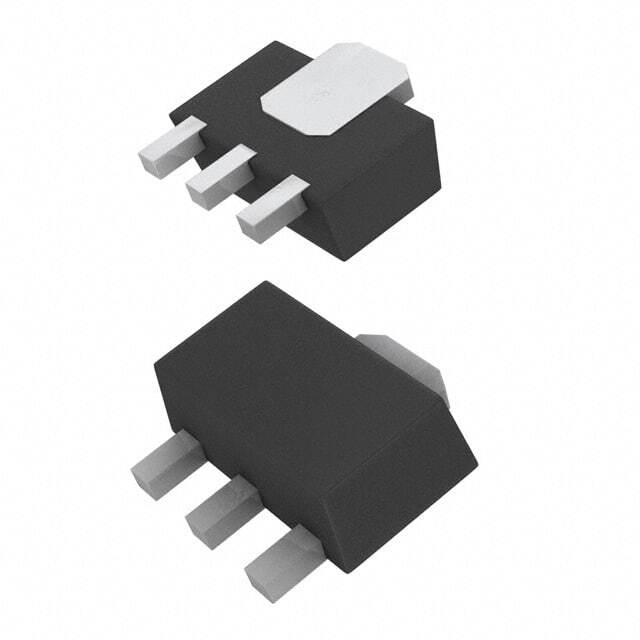

Same model may have multiple batches, images only for reference.
2SD1664-Q-TP
Same model may have multiple batches, images only for reference.

2SD1664-Q-TP

Part No 2SD1664-Q-TP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS NPN 32V 1A SOT89
Datasheet
2SD1664-Q-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 32 V
Vce Saturation (Max) @ Ib, Ic 400mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 100mA, 3V
Power - Max 500 mW
Frequency - Transition 150MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number 2SD1664
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 850724-2SD1664-Q-TP
Ultra Librarian 3D Model Ultra Librarian 2SD1664-Q-TP CAD Model

Description

The 850724-2SD1664-Q-TP is an NPN bipolar transistor from Micro Commercial Co.

  • Type: NPN Bipolar Transistor
  • Power Rating: 500 mW
  • Voltage Breakdown (Collector-Emitter): 32 V
  • Maximum Collector Current: 1 A
  • Vce Saturation: 400mV @ 500mA
  • DC Current Gain (hFE): 120 @ 100mA and Vce of 3V
  • Frequency Transition: 150MHz
  • Mounting: Surface Mountable
  • Package: TO-243AA
  • Operating Temperature Range: -55°C to 150°C
