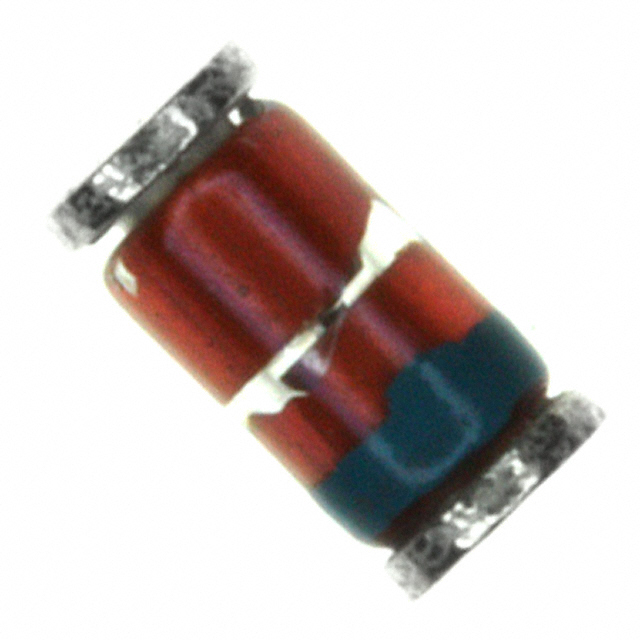

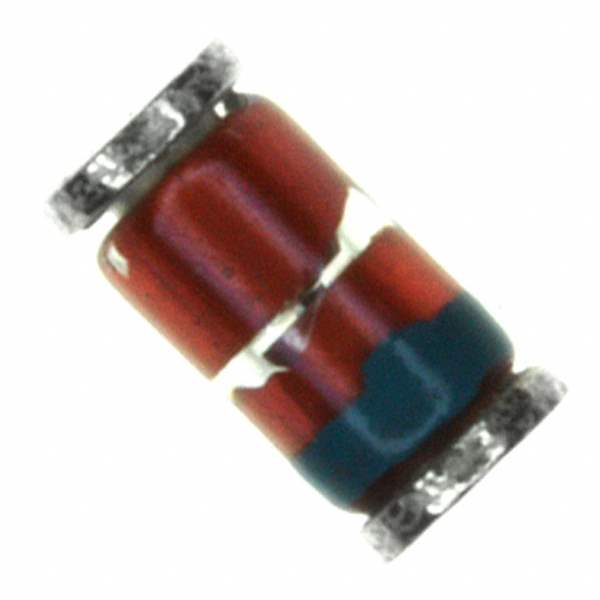

The DL4741A-TP is a 1W Zener diode manufactured by Micro Commercial Components (MCC). It is designed to provide voltage regulation in a wide range of electronic circuits.

Applications

• Voltage regulation
• Overvoltage protection
• Clipping circuits
• Level shifting
• Reference voltage generation

Features

• Zener Voltage: 11V
• Power Dissipation: 1W
• Tolerance: ±5%
• DO-41 Package
• RoHS Compliant

Benefits

• Precise voltage regulation
• Protection against overvoltage conditions
• Easy to integrate into circuit designs
• Wide operating temperature range
• Environmentally friendly

Additional Details

The DL4741A-TP is a silicon Zener diode designed to maintain a stable voltage across its terminals when reverse biased. It has a nominal Zener voltage of 11V with a tolerance of ±5%. The diode is capable of dissipating 1W of power. It is housed in a DO-41 package, which is a through-hole package suitable for easy mounting on printed circuit boards. The DL4741A-TP is commonly used in power supplies, voltage regulators, and other circuits where a stable reference voltage is required. The Zener diode's ability to clamp voltage makes it ideal for protecting sensitive electronic components from voltage spikes or overvoltage conditions. The device operates over a wide temperature range, making it suitable for use in various environments. This component is often utilized in power supplies to provide a stable output voltage, protecting downstream circuitry from damage due to voltage fluctuations.
