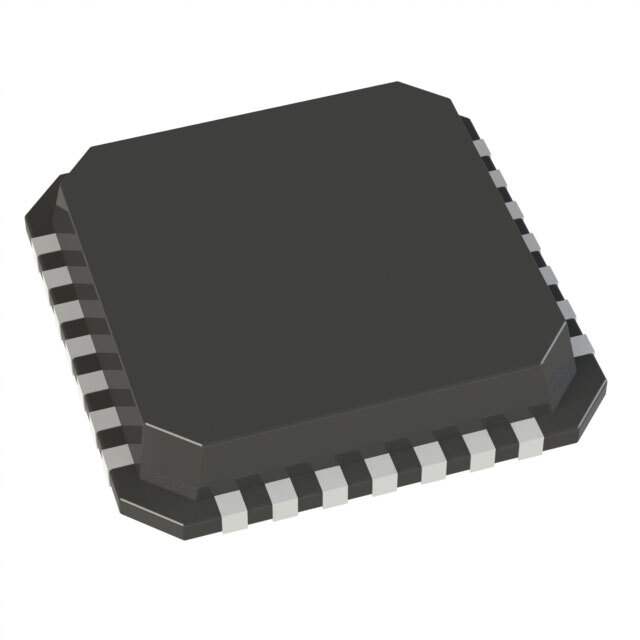

Microchip Technology EMC2102-DZK-TR

The EMC2102-DZK-TR is a high-performance, SMBus compliant fan controller with temperature monitoring, designed and manufactured by Microchip Technology. This advanced device is specifically tailored for managing the rotational speed of fans in computer and electronics systems to ensure optimal thermal performance and noise control.

Key Features

• Temperature Monitoring: The EMC2102-DZK-TR is equipped with an automatic diode selection for CPU temperature monitoring and can also monitor an external diode.
• Fan Control: It features a sophisticated fan control algorithm that can drive a fan using either voltage or PWM control, providing flexibility for different types of fan architectures.
• Acoustic Noise Reduction: With its Smart Fan control, the EMC2102-DZK-TR minimizes acoustic noise and vibration by using a smooth fan speed control curve.
• High Accuracy: The device boasts an impressive ±1°C accuracy for external temperature monitoring, ensuring precise thermal management.
• Enhanced Safety Features: It includes safety features such as fan fault detection and automatic fan spin-up to ensure reliable operation.
• Programmable Settings: Various parameters can be programmed via the SMBus interface, allowing for customized thermal management strategies.

Applications

The EMC2102-DZK-TR is ideal for a wide range of applications where precise fan speed control and thermal monitoring are critical. It's commonly used in notebook computers, desktop computers, servers, and other embedded systems. Its versatility also makes it suitable for use in telecommunications equipment, storage systems, and industrial electronics.

Package and Availability

This fan controller is available in a compact 10-MSOP (Mini Small Outline Package) that is RoHS compliant, ensuring environmental standards are met. The EMC2102-DZK-TR is offered in tape and reel packaging, facilitating efficient assembly processes for high-volume production environments.

With its robust feature set and Microchip's commitment to quality, the EMC2102-DZK-TR stands out as a leading solution for thermal and fan management in sophisticated electronic systems.
