HV2201PJ-G-M904 Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

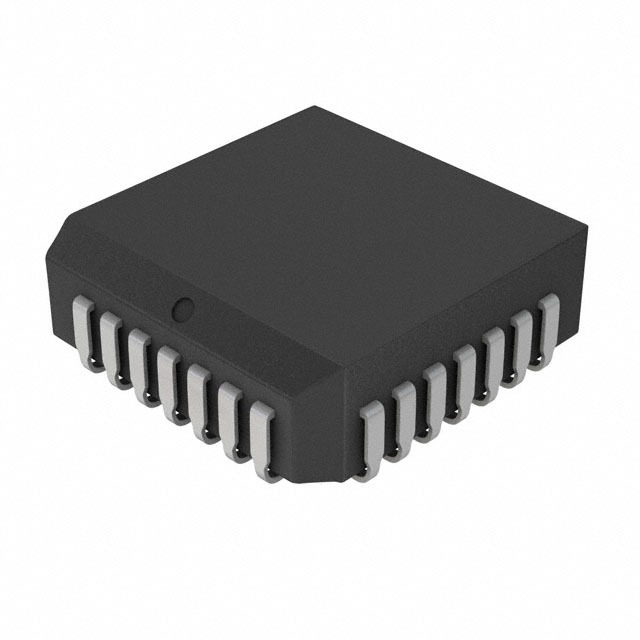

HV2201PJ-G-M904

Part No HV2201PJ-G-M904
Manufacturer Microchip Technology
Catalog Interface - Analog Switches - Special Purpose
Description IC ULTRASOUND SWITCH 1:1 28PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)InterfaceAnalog Switches - Special Purpose
Manufacturer Microchip Technology
Part Status Active
Applications Ultrasound
Switch Circuit SPST
Number of Channels 8
On-State Resistance (Max) 19Ohm
Voltage - Supply, Single (V+) 40V ~ 200V
Voltage - Supply, Dual (V±) ±40V ~ 160V
-3db Bandwidth 50MHz
Operating Temperature 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 28-LCC (J-Lead)
Supplier Device Package 28-PLCC (11.5x11.5)
Base Product Number HV2201
Ultra Librarian 3D Model Ultra Librarian HV2201PJ-G-M904 CAD Model
