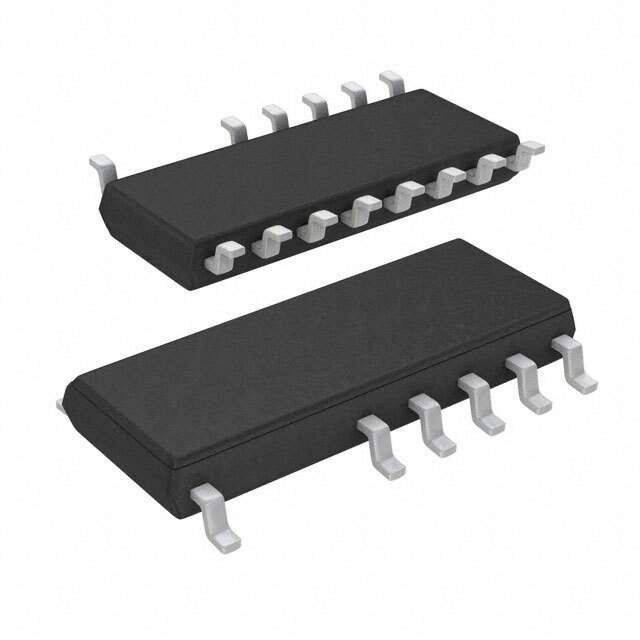

Microchip Technology HV9901NG-G LED Driver IC

The HV9901NG-G from Microchip Technology is a versatile, open-loop, current-mode switching LED driver IC that is designed for a wide range of applications. The device operates with a supply voltage from 8V to 450V, making it suitable for lighting solutions that require consistent and efficient LED driving capabilities, including industrial, residential, and commercial lighting systems.

This LED driver IC is particularly adept at handling high-brightness LEDs, which demand precise current control to ensure consistent light output and maximize the lifespan of the lighting system. The HV9901NG-G employs a patented control scheme that allows it to achieve excellent regulation of the LED current without the need for loop compensation or high-side current sensing. This unique approach simplifies the design and reduces the component count, which can lead to cost savings in both materials and assembly.

The HV9901NG-G is capable of driving LEDs with a high level of efficiency, which is essential for applications where energy conservation is a priority. Its high-voltage capability allows for multiple LEDs to be connected in series, further improving efficiency by reducing current losses and enabling the use of smaller and less expensive components.

This IC is offered in an 8-pin PDIP package, providing a compact solution that can easily be integrated into various LED lighting designs. Its thermal performance is enhanced by the use of an exposed pad, which helps in dissipating heat away from the IC, ensuring reliable operation even under high-power conditions or in high-temperature environments.

For designers and engineers looking for a robust and reliable LED driver, the HV9901NG-G offers an excellent balance of performance, ease of use, and cost-effectiveness. Its broad supply voltage range, efficient operation, and simplified design approach make it a compelling choice for a wide array of LED lighting applications.
