Product Overview: JANTX1N6463US

The JANTX1N6463US is a high-quality electronic component manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This product is a robust, military-grade transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events.

The "JANTX" prefix in the product name indicates that this TVS diode meets the stringent requirements of the Joint Army-Navy Specifications (JAN), ensuring reliability and performance in the most demanding military applications. The "US" suffix suggests that this device is built to a higher standard, typically signifying a space-level product with enhanced screening and quality control measures.

The JANTX1N6463US diode is characterized by its unidirectional functionality, meaning it provides protection in one direction, and it is designed to operate in extreme environmental conditions. It features a standoff voltage of 6.8 volts, with a maximum clamping voltage that ensures protection for sensitive circuits without compromising performance.

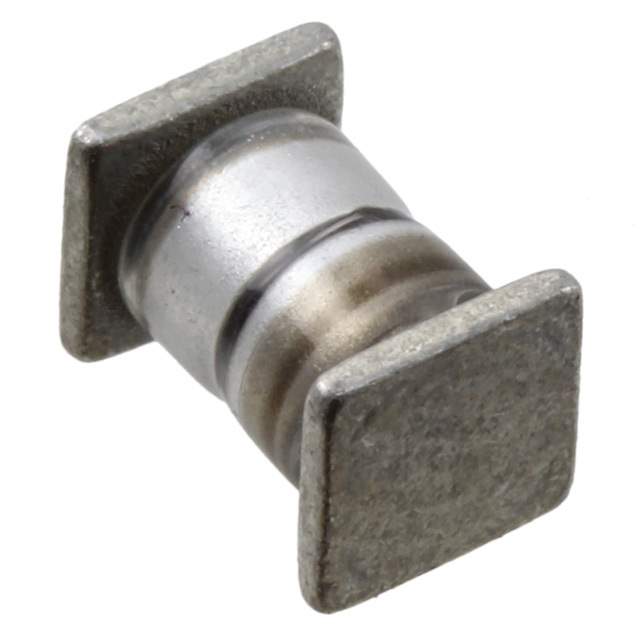

This TVS diode is packaged in a compact, surface-mount design that allows for efficient use of PCB space and is compatible with high-volume assembly processes. The low-profile package is ideal for applications where size and weight are critical factors, such as in aerospace, defense, and satellite systems.

With its high surge capability, fast response time, and low leakage current, the JANTX1N6463US is an excellent choice for protecting power supplies, communication systems, and other mission-critical components from the damaging effects of transient voltages. Microchip Technology's commitment to quality ensures that this TVS diode provides reliable performance and helps to extend the life of the electronic systems it protects.

For detailed specifications, application notes, and additional information on how to integrate the JANTX1N6463US into your designs, visit Microchip Technology's official website or contact their customer support team.
