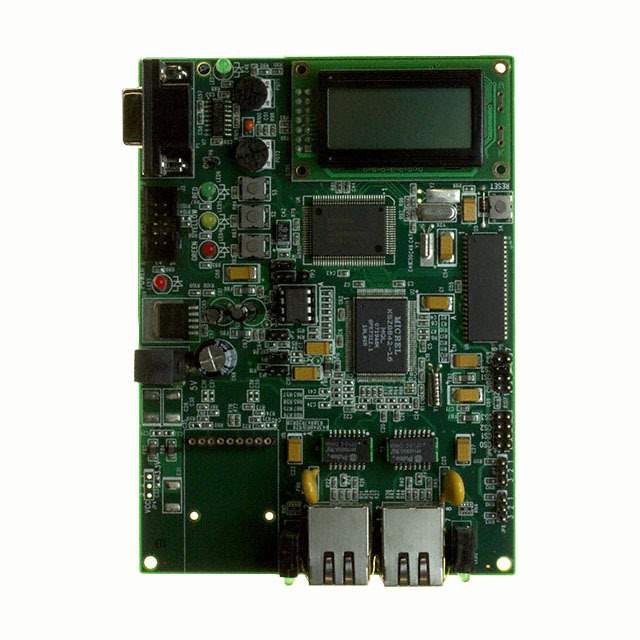

The KSZ8842-16MQL-EVAL from Microchip Technology is a comprehensive evaluation board designed for testing and developing applications with the KSZ8842 series of Ethernet controllers. This evaluation platform is tailored for network-enabled embedded systems, providing a versatile and robust way to manage network traffic and connectivity in a variety of applications.

Key Features


• Integrated 2-Port Switch: The board features the KSZ8842-PMQL, a 2-port Ethernet switch with a non-PCI interface, enabling seamless connection and switching capabilities within embedded systems.

• Flexible Interface Options: It supports multiple interface options including SPI, I²C, and Microwire, making it adaptable to a wide range of microcontroller or processor-based systems.

• Advanced Network Features: The KSZ8842 series comes with features such as QoS (Quality of Service) prioritization, VLAN support, and power management, which are crucial for developing sophisticated network applications.

• Easy to Use: The evaluation board is user-friendly, with onboard LEDs for status indication and test points for easy access to the chip's signals.

• Comprehensive Development Support: Microchip provides extensive documentation, application notes, and software support to assist developers in accelerating their product development cycle.


Applications

The KSZ8842-16MQL-EVAL is ideal for developing applications such as:


• Industrial control and automation

• Building automation and security systems

• Home networking equipment

• Embedded multimedia devices

• Networked printers and servers


Technical Specifications

The evaluation board comes with the following technical specifications:


• Power requirements: 3.3V DC

• Operating temperature: 0°C to 70°C

• Dimensions: Standard evaluation board size for benchtop use


In summary, the KSZ8842-16MQL-EVAL from Microchip Technology is a versatile and powerful tool for developers looking to integrate network capabilities into their products. With its robust feature set and flexible interfacing options, it offers a solid foundation for creating advanced networked devices.
