Microchip Technology's M2S050T-FCSG325 Product Overview

The M2S050T-FCSG325 is a high-performance, feature-rich FPGA (Field Programmable Gate Array) device from Microchip Technology's SmartFusion2 family. This innovative product integrates a wealth of functionality, including a reliable FPGA fabric, a powerful ARM Cortex-M3 processor, and programmable analog capabilities, making it a versatile choice for a wide range of applications in industrial, medical, automotive, and defense sectors.

Key Features

• FPGA Fabric: The device boasts a dense, low-power FPGA fabric that provides ample logic cells for complex digital logic designs. This allows designers to create highly customized hardware accelerators and interfaces tailored to their specific application requirements.
• ARM Cortex-M3 Processor: At the heart of the M2S050T-FCSG325 is a 166 MHz ARM Cortex-M3 processor that offers a balance of efficiency and processing power. This 32-bit processor is ideal for managing system control tasks and can run a rich set of real-time operating systems.
• High-Speed Interfaces: The device supports a variety of high-speed serial interfaces, including PCIe, Gigabit Ethernet, and USB, enabling fast data transfers and connectivity options for modern communication requirements.
• Advanced Security: With an emphasis on security, the M2S050T-FCSG325 provides advanced cryptographic accelerators, a physically unclonable function (PUF), and secure boot capabilities to protect intellectual property and ensure secure system operation.
• Programmable Analog: Integrating programmable analog blocks, the FPGA allows for flexible interfacing with real-world signals, making it suitable for mixed-signal applications that require analog-to-digital conversion or vice versa.

Package and Integration

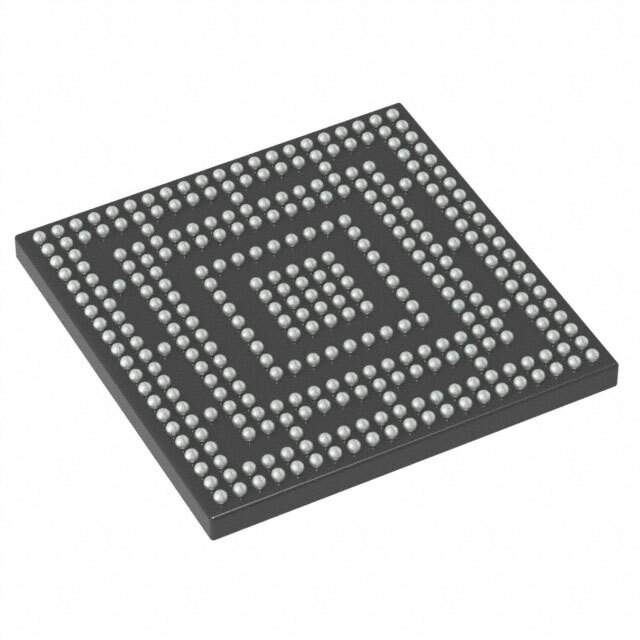

The M2S050T-FCSG325 comes in a compact 325-ball flip-chip BGA package, which is designed for space-constrained applications. Its small form factor, combined with a robust set of I/O options, ensures ease of integration into a variety of system designs.

Applications

Due to its combination of processing power, FPGA flexibility, and security features, the M2S050T-FCSG325 is an excellent choice for applications such as industrial control systems, medical imaging, automotive infotainment, and secure communications in defense systems.
