Microchip Technology's MCP1703T-2502E/MB Low-Dropout Voltage Regulator

Microchip Technology's MCP1703T-2502E/MB is a highly reliable, low-dropout voltage regulator designed to deliver a fixed output voltage of 2.5V with an input voltage range of 2.7V to 16V. This component is optimized for low-power operations and is capable of supplying up to 250 mA of output current, making it an excellent choice for battery-operated devices, microcontroller power supplies, and other portable applications.

Key Features:

• Output Voltage: Precisely regulated 2.5V output, suitable for a variety of low-voltage applications.
• High Current Output: Capable of delivering up to 250 mA, providing ample power for most low-power devices.
• Low Dropout Voltage: With a low dropout voltage of typically 178 mV at full load, it maintains regulation even when the supply voltage is close to the output voltage.
• Wide Input Voltage Range: Operates over a broad input voltage range from 2.7V to 16V, accommodating a variety of power sources.
• Stable with Ceramic Output Capacitors: Designed to be stable with low-cost ceramic output capacitors, reducing overall system cost.
• Short-Circuit Protection: Features short-circuit protection that helps prevent damage to the regulator during fault conditions.
• Thermal Limiting: Integrated thermal limiting provides protection against overheating.
• Low Power Consumption: With a quiescent current of just 2 µA (typical), it is ideal for battery-powered applications where power efficiency is critical.

Applications:

The MCP1703T-2502E/MB is versatile and can be used in a wide array of electronic devices. It is particularly well-suited for:

• Battery-operated devices
• Microcontroller power supplies
• Portable electronic devices
• Smart cards
• Power management in IoT devices

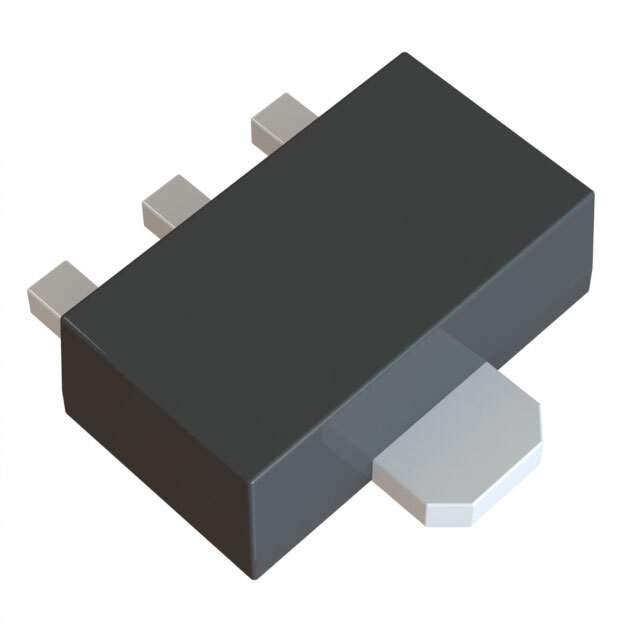

With its small footprint, the MCP1703T-2502E/MB comes in a 3-pin SOT-89 package, which makes it easy to integrate into space-constrained designs. Its robust design ensures reliable operation even under challenging conditions, making it a preferred choice for designers looking for a dependable voltage regulation solution.

For detailed specifications and application guidance, refer to the datasheet provided by Microchip Technology.
