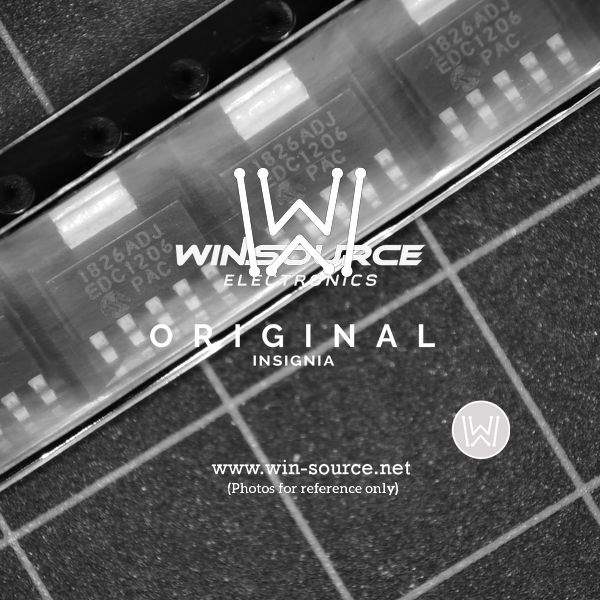

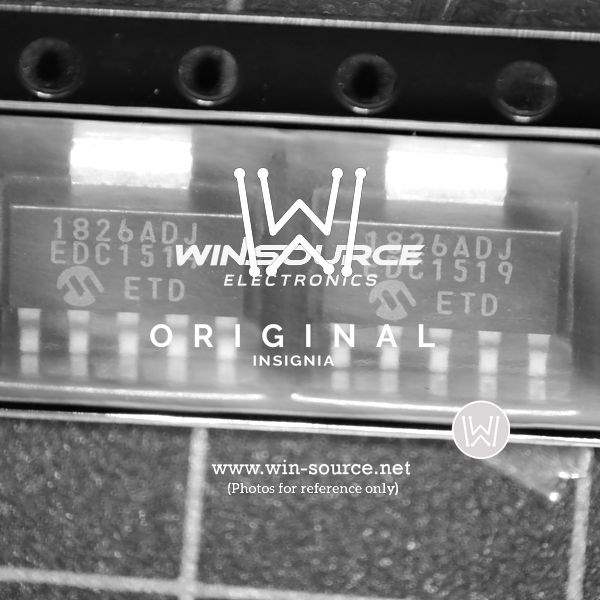

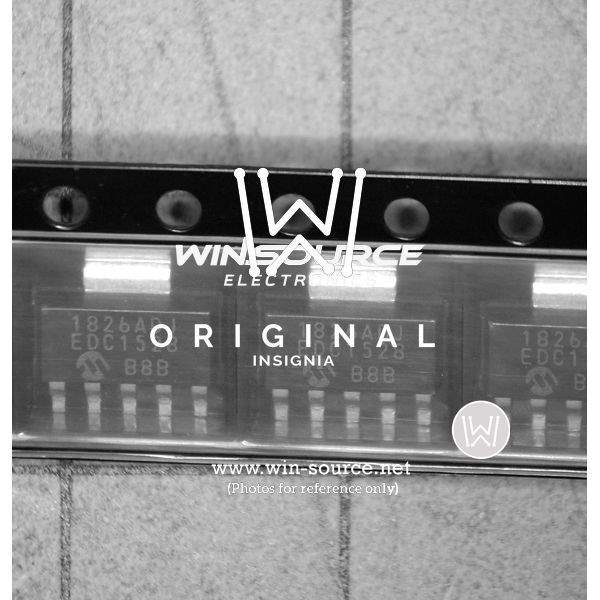

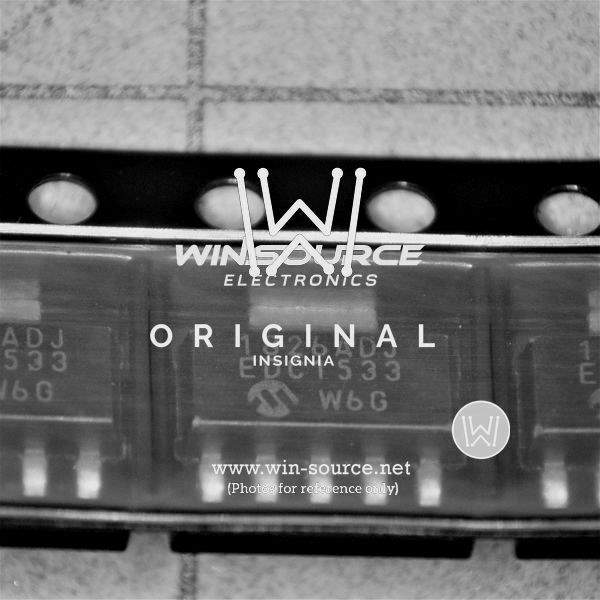

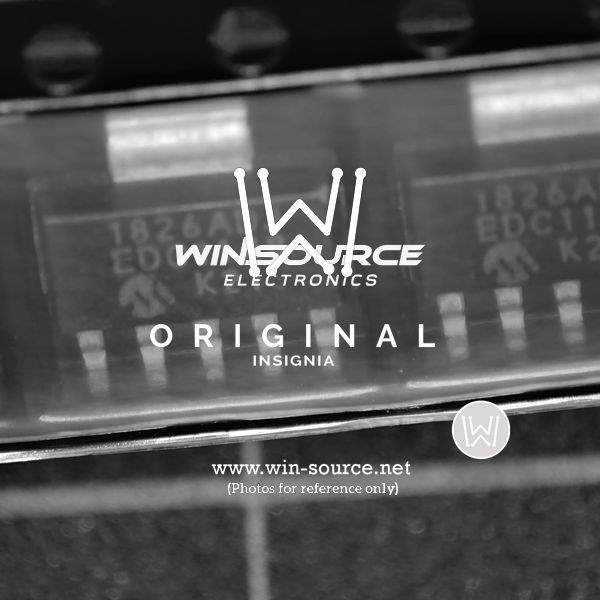

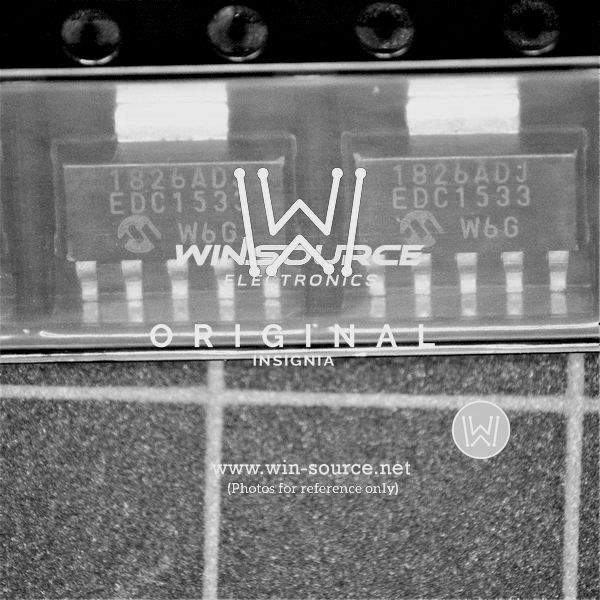

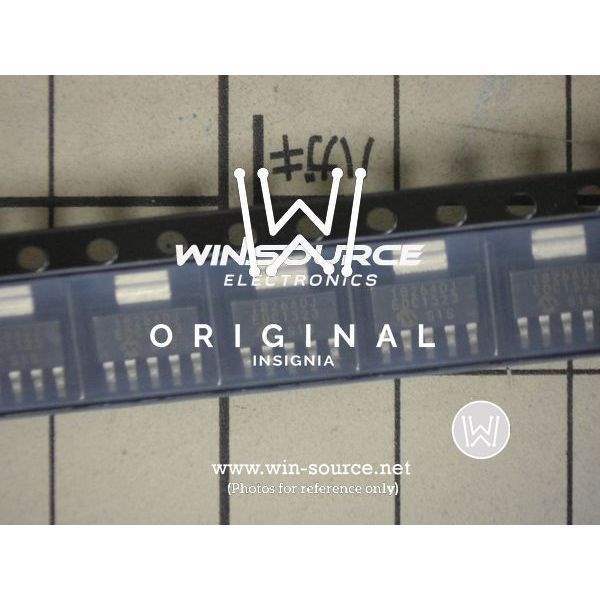

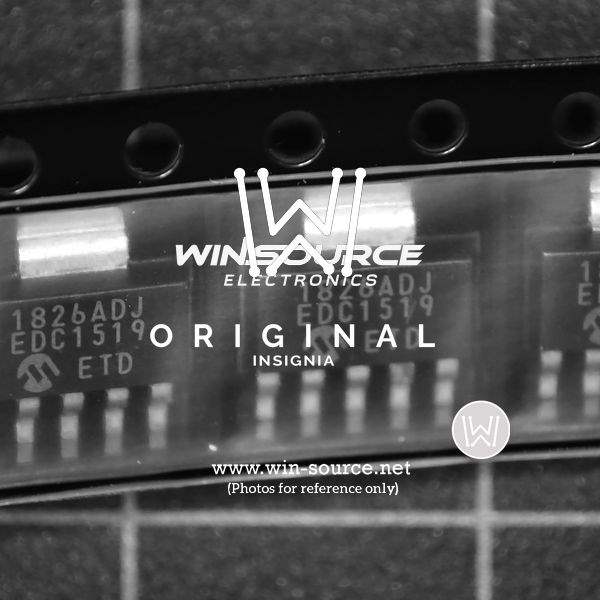

Microchip Technology MCP1826T-ADJE/DC Low Dropout Voltage Regulator

The MCP1826T-ADJE/DC from Microchip Technology is a high-performance, 1A Low Dropout Voltage Regulator (LDO) that offers excellent voltage regulation and output accuracy, tailored for demanding applications that require a stable and reliable power supply. This LDO is designed to maintain a consistent voltage level and is an ideal choice for microcontrollers, analog and digital circuits, and other sensitive electronic devices.

Key Features

• Adjustable Output Voltage: This LDO features an adjustable output voltage range, which can be set from 0.8V to 5.0V using external resistors, providing designers with flexibility to cater to various circuit requirements.
• High Output Current: The MCP1826T-ADJE/DC is capable of delivering up to 1A of continuous current, making it suitable for high-power applications.
• Low Dropout Voltage: With a typical dropout voltage of only 330 mV at full load, it ensures efficient operation even when the input voltage is close to the output voltage, thus minimizing power loss and improving efficiency.
• Stable with Ceramic Output Capacitors: The regulator is stable with ceramic output capacitors, offering improved performance, reliability, and smaller physical size compared to tantalum or aluminum electrolytic capacitors.
• Overtemperature and Overcurrent Protection: Built-in overtemperature and overcurrent protection safeguards the device and the load against fault conditions, enhancing system reliability.
• Low Power Consumption: The MCP1826T-ADJE/DC features a low quiescent current, which is beneficial for battery-powered devices, extending operational life.
• Wide Input Voltage Range: It operates over a broad input voltage range from 2.3V to 6.0V, accommodating a variety of power sources.

Applications

The MCP1826T-ADJE/DC is versatile and can be used in a multitude of applications, including:

• Battery-powered devices
• Microcontroller power supplies
• Portable electronics
• Networking and telecommunication systems
• Peripheral applications

With its combination of features, the MCP1826T-ADJE/DC is a reliable and efficient solution for designers looking to enhance the performance and stability of their power management systems.
