Microchip Technology MCP23S09T-E/MG Product Overview

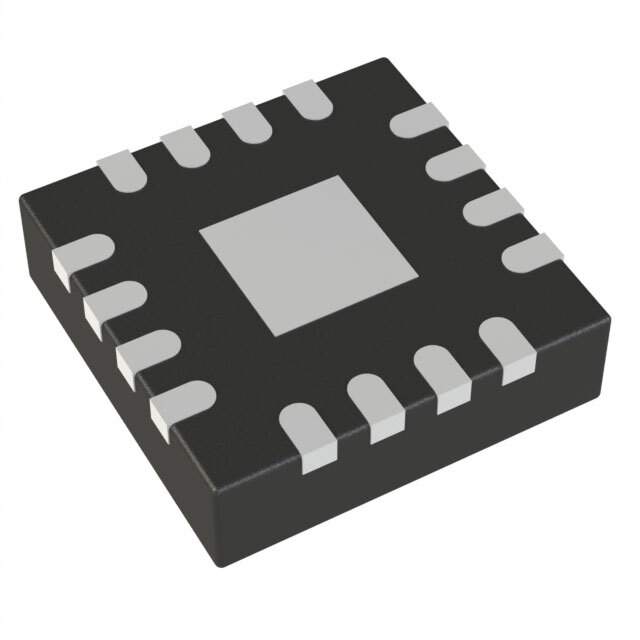

The MCP23S09T-E/MG is a versatile 8-bit I/O expander from Microchip Technology, designed to provide additional input/output ports for microcontrollers over a SPI interface. This compact and highly integrated component is housed in a 16-pin QFN (Quad Flat No-lead) package, making it an ideal solution for space-constrained applications.

With the MCP23S09T-E/MG, users can easily expand the number of I/Os available in their system, which is particularly beneficial in applications where the microcontroller does not have enough I/O ports or when additional ports are required for interface buttons, LEDs, sensors, and other peripherals. The device operates over a wide voltage range of 1.8V to 5.5V, ensuring compatibility with both low-voltage and standard logic level systems.

Key Features:

• 8-bit I/O Expansion: Provides 8 additional general-purpose I/O pins that can be individually configured as input or output.
• SPI Interface: Offers high-speed SPI communications with a data transfer rate of up to 10 MHz, enabling quick interaction with the host microcontroller.
• Interrupt Output: Includes an interrupt output pin which can be configured to signal the host microcontroller when an input state has changed, enhancing system responsiveness.
• Configurable Polarity: Input polarity inversion register allows users to configure the polarity of the input port data.
• External Reset Input: A hardware reset pin (/RESET) permits the device to be reset externally.
• Low Standby Current: Ideal for battery-operated applications due to its low standby current consumption.
• Wide Operating Voltage Range: Supports a broad range of supply voltages, accommodating various logic levels and applications.

Whether it's for industrial control systems, home automation, consumer electronics, or any other system requiring additional I/Os, the MCP23S09T-E/MG from Microchip Technology is an excellent choice for designers looking to enhance their projects with reliable and efficient I/O expansion capabilities.

Applications:

• Industrial Control Systems
• Home Automation
• Consumer Electronics
• Automotive
• Embedded Systems
