The Microchip MCP4562-503E/MS is a digitally controlled potentiometer that offers a compact and versatile solution for applications requiring variable resistance adjustments. This device is part of Microchip's MCP4562 series and is designed to operate with a single supply voltage ranging from 2.7V to 5.5V, making it suitable for both 3.3V and 5V systems.

Key Features:

• Resistance Value: The MCP4562-503E/MS offers a maximum resistance of 50kΩ, which can be adjusted digitally through an I²C compatible interface.
• Resolution: The device features a 7-bit resolution, which corresponds to 128 wiper positions, providing fine-grained control over the resistance adjustments.
• Memory: It includes non-volatile memory (EEPROM) to store the wiper position, ensuring the last set resistance value is retained even after power is cycled.
• Interface: The integrated I²C interface supports standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) communication modes, ensuring compatibility with a wide range of microcontrollers and processors.

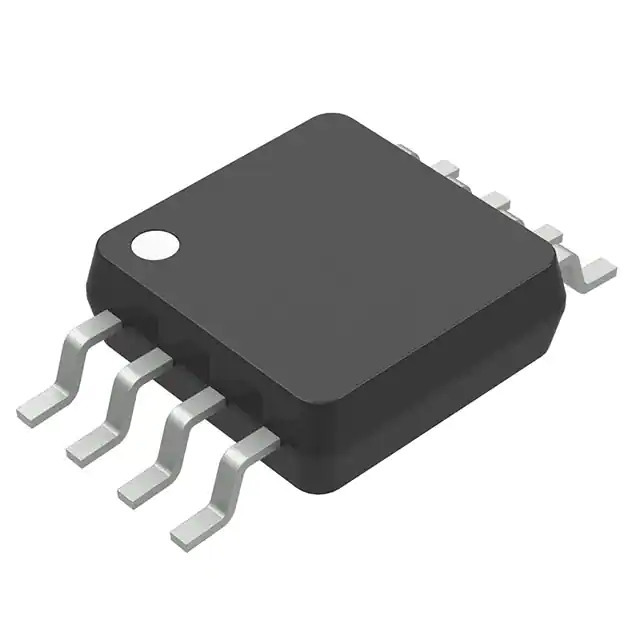

• Package: Housed in an MSOP (Mini Small Outline Package) with 8 leads, the MCP4562-503E/MS is designed for space-constrained applications.
• Temperature Range: This digital potentiometer operates over an industrial temperature range of -40°C to +125°C.
• Multiple Devices: Up to eight MCP4562 devices can share the same I²C bus, thanks to its built-in address selection pins, allowing for multiple potentiometers in a single design without additional communication lines.

Applications:

The MCP4562-503E/MS is suitable for a wide range of applications, including:

• Automated adjustments to control system parameters
• Calibration of equipment through digital interfaces
• Audio equipment for volume and tone control
• Adjustable power supplies and voltage dividers
• LED lighting controls

With its precision resistance manipulation, non-volatile memory, and simple I²C communication, the Microchip MCP4562-503E/MS is an ideal choice for designers looking to add digital potentiometer functionality to their electronic projects or products.
