Microchip Technology's MCP4642T-103E/MF Digital Potentiometer

The MCP4642T-103E/MF is a highly integrated digital potentiometer (digipot) device from the renowned manufacturer Microchip Technology. This compact component is designed to offer precision and programmability in a wide array of electronic applications. With its digital control interface, the MCP4642T-103E/MF allows for the adjustment of resistance settings, replacing mechanical potentiometers or trimmers.

Key Features:

• Resistance Value: The MCP4642T-103E/MF offers a resistance value of 10kΩ, providing a versatile range suitable for various applications.
• Dual-Channel: This device features two independent potentiometers in one package, allowing for compact designs and reduced board space.
• Interface: It comes with an I2C interface, enabling easy communication with microcontrollers and other digital systems.
• Resolution: The potentiometer offers 7-bits (128 wiper steps) of resolution, ensuring fine adjustments can be made for precise control.
• Non-Volatile Memory: Equipped with non-volatile memory (EEPROM), the MCP4642T-103E/MF retains its settings even after power-off, ensuring consistent performance across power cycles.
• Operating Voltage: It operates within a wide voltage range of 2.7V to 5.5V, making it suitable for both 3.3V and 5V systems.
• Temperature Range: The device is designed to operate over an extended temperature range, from -40°C to +125°C, ensuring reliability in harsh environments.

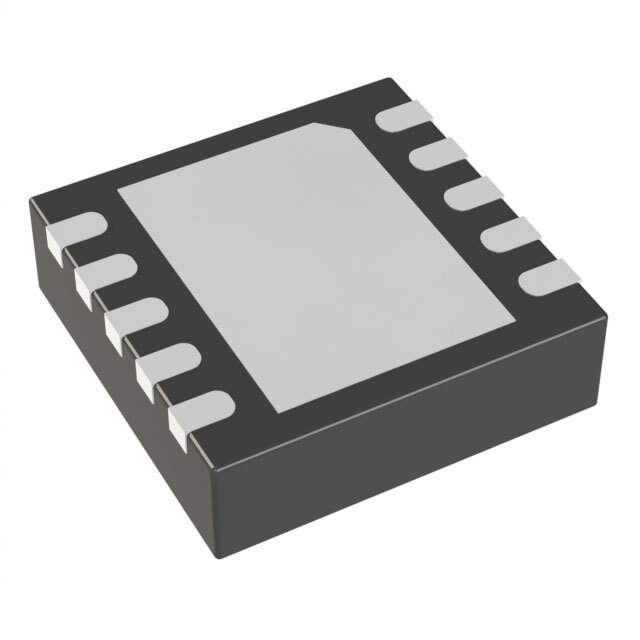

• Package: The MCP4642T-103E/MF is offered in a compact, 8-lead 2x3 TDFN package, which is ideal for space-constrained applications.

Applications:

The versatility of the MCP4642T-103E/MF makes it suitable for a wide range of applications, including:

• Automotive electronics
• Consumer electronics
• Portable devices
• Data acquisition systems
• Industrial control systems
• Communication systems

With its combination of dual-channel configuration, non-volatile memory, and precise adjustability, the MCP4642T-103E/MF from Microchip Technology is a robust solution for designers looking to add digital potentiometer functionality to their electronic designs.
