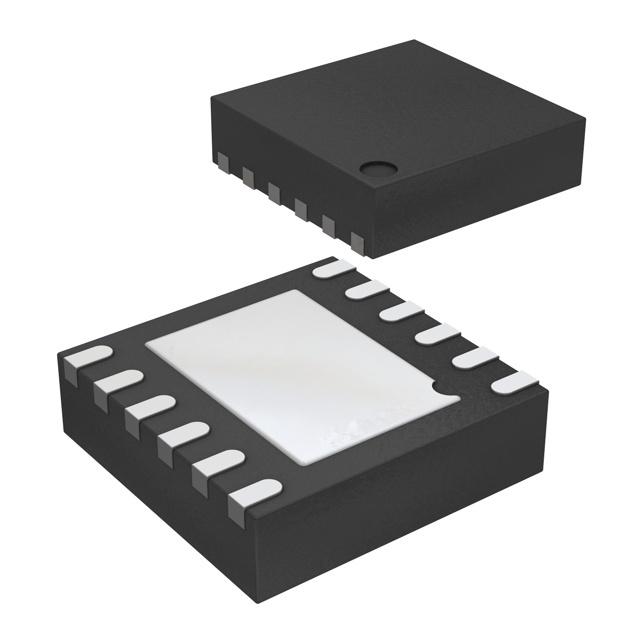

MIC2230-S4YML-TR

Part No MIC2230-S4YML-TR
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK 1.2V/3.3V 0.8A 12MLF
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Cut Reel
Purpose Step-Down
Topology Buck
Output Type Fixed
Number of Outputs 2
Minimum Input Voltage 2.5V
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.2V, 3.3V
Output Current 800mA
Frequency - Switching 2.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 12-MLF (4x4)
Win Source Part Number 1076063-MIC2230-S4YML-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MIC2230-S4YML-TR CAD Model

Description

The MIC2230-S4YML-TR is a high-efficiency, integrated power management IC (PMIC) designed and manufactured by Microchip Technology. This advanced solution is specifically tailored for performance-demanding applications, providing a compact, reliable, and efficient power management system.

Key Features

  • Integrated Power Solution: The MIC2230 integrates multiple DC/DC converters and LDOs to provide a complete power management system in a single package, reducing the need for additional external components.
  • High Efficiency: With its advanced switching regulators, the MIC2230 operates with high efficiency, which helps to extend battery life in portable applications and reduce heat generation.
  • Programmable Output Voltage: The output voltage is programmable via an I2C interface, allowing for dynamic voltage scaling and power optimization for various loads.
  • Small Footprint: Housed in a compact MLF® (Micro Lead Frame) package, the MIC2230-S4YML-TR is designed for space-constrained applications.
  • Thermal Management: The device includes thermal shutdown protection to safeguard against overheating, ensuring reliable operation under various conditions.
  • Low Quiescent Current: The MIC2230 features a low quiescent current, which minimizes power consumption during idle or standby modes, further enhancing battery life.

Applications

The MIC2230-S4YML-TR is suitable for a wide range of applications, including but not limited to:

  • Smartphones and Tablets
  • Portable Media Players
  • Wireless Networking Devices
  • GPS and Navigation Systems
  • Digital Cameras and Camcorders

Quality and Reliability

Microchip Technology is known for its commitment to quality and reliability. The MIC2230-S4YML-TR is built to meet high standards, ensuring stable performance and a long operational lifespan. It is available in tape and reel packaging, denoted by the 'TR' suffix, which facilitates efficient assembly for high-volume production.

Ordering Information

The MIC2230-S4YML-TR is available for order now. For detailed specifications, technical documentation, and ordering information, please visit the Microchip Technology website or contact your local Microchip sales representative.
