Product Overview: MIC23201YML-TR from Microchip Technology

The MIC23201YML-TR is a high-performance, synchronous step-down regulator module from Microchip Technology, designed to deliver a continuous output current of up to 2A. This compact power management integrated circuit (PMIC) is ideal for a wide range of applications, including distributed power systems, networking and telecommunications equipment, and portable devices.

Key Features

• High Efficiency: The MIC23201YML-TR boasts an efficiency of up to 95%, minimizing power loss and heat generation, which is crucial for maintaining the longevity and reliability of electronic systems.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 0.7V to 5.5V, allowing for versatile use across various applications that require different voltage levels.
• Integrated Inductor: The module includes an integrated inductor, which simplifies the design process and reduces the overall footprint on the PCB, making it an excellent choice for space-constrained applications.
• Frequency Synchronization: With the capability to synchronize to an external clock, the MIC23201YML-TR helps to reduce electromagnetic interference (EMI), a critical feature for applications sensitive to noise.
• Thermal Shutdown: Enhanced safety features include thermal shutdown protection, which prevents damage due to excessive heat by automatically shutting down the regulator if the internal temperature exceeds safe operating limits.

Package and Availability

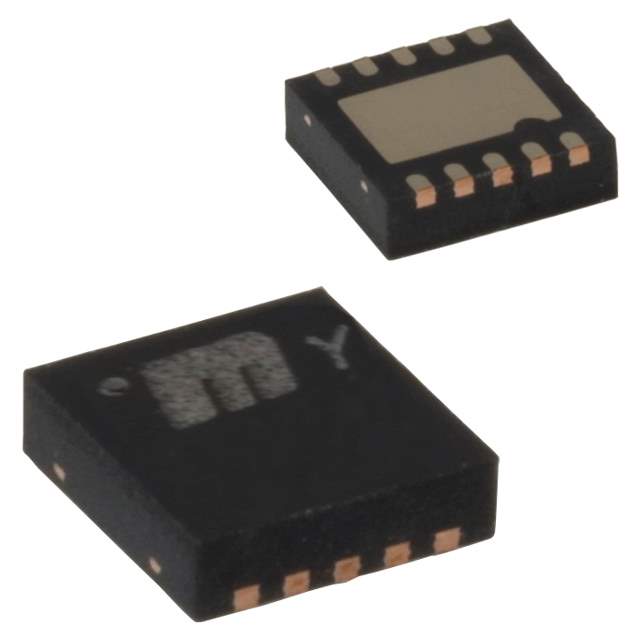

The MIC23201YML-TR is available in a compact 10-pin 2.5mm x 3mm MLF® package, which is RoHS compliant and halogen-free. Its small size and leadless package make it an excellent choice for modern, high-density circuit designs.

Applications

• Portable and Battery-Powered Devices
• Networking Equipment
• Telecommunications Infrastructure
• Point-of-Load Applications
• Computing and Storage Platforms

With its high efficiency, flexible voltage output, and compact design, the MIC23201YML-TR from Microchip Technology is a versatile solution that meets the demanding requirements of a wide array of electronic systems.
