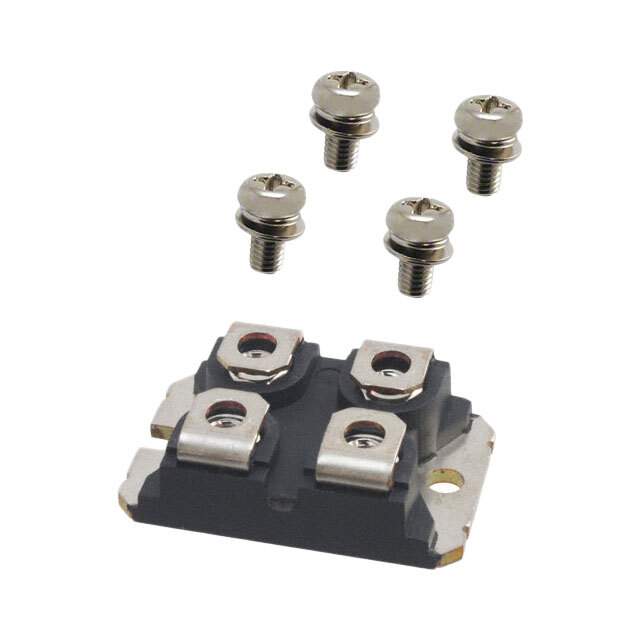

Product Overview: MSC025SMA120J by Microchip Technology

The MSC025SMA120J is a high-performance silicon carbide (SiC) MOSFET manufactured by Microchip Technology, a leader in the semiconductor industry. This product is designed to meet the needs of modern high-efficiency and high-power applications, offering superior switching performance and reliability compared to traditional silicon-based MOSFETs.

Key Features

• High Blocking Voltage: With a drain-to-source voltage (Vds) of 1200V, the MSC025SMA120J can handle high voltage applications, making it ideal for power conversion systems.
• Low On-Resistance: The device features a low on-resistance (Rds(on)) of 25mΩ, which reduces conduction losses and improves overall efficiency.
• Fast Switching Speed: The fast switching capability minimizes switching losses and enables operation at higher frequencies, which can lead to smaller and lighter system designs.
• High-Temperature Performance: SiC MOSFETs can operate at higher temperatures than silicon MOSFETs, which simplifies cooling requirements and enhances system reliability.
• Robust Body Diode: The MSC025SMA120J has an integral body diode with low reverse recovery charge, further enhancing its switching performance.

Applications

The MSC025SMA120J is suitable for a wide range of applications, including:

• Power supply units
• Electric vehicle (EV) chargers
• Solar inverters
• Motor drives
• High-voltage DC/DC converters

Additional Benefits

By integrating the MSC025SMA120J into your designs, you will benefit from the reduced system size and weight due to the high-frequency operation capability of SiC technology. Moreover, the improved efficiency leads to energy savings and lower operational costs. The MSC025SMA120J is also compatible with standard gate drive voltages, which allows for easy integration into existing systems without the need for additional components or complex drive circuitry.

Quality and Support

Microchip Technology is committed to delivering high-quality products and provides comprehensive technical support for the MSC025SMA120J. Customers can access a wealth of resources, including datasheets, application notes, and design tools, to ensure a seamless integration into their applications.
