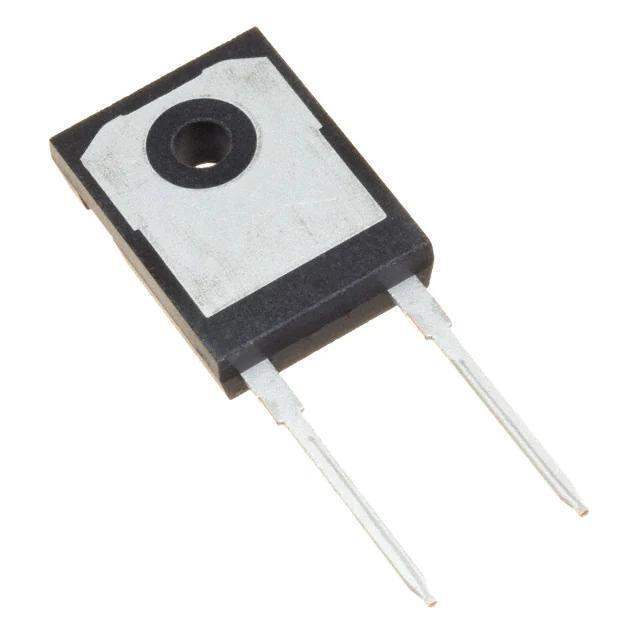

Microchip Technology's MSC040SMA120B: A Silicon Carbide Power Module

The MSC040SMA120B is a state-of-the-art silicon carbide (SiC) power module from Microchip Technology, designed to push the boundaries of high-efficiency and high-performance power conversion. This module is part of Microchip's extensive portfolio of power electronics that cater to a wide range of applications, including electric vehicles, industrial power supplies, and renewable energy systems.

Constructed with advanced SiC MOSFETs, the MSC040SMA120B offers superior performance compared to traditional silicon-based power modules. The inherent material properties of SiC allow for higher junction temperatures, reduced switching and conduction losses, and improved thermal performance. This translates to better efficiency, higher power density, and increased reliability under harsh operating conditions.

Key Features of the MSC040SMA120B:

• High-Temperature Operation: The module is capable of operating at junction temperatures up to 150°C, enabling designs that can withstand extreme environments.
• Low Switching Losses: With fast switching speeds and low switching energy, the MSC040SMA120B reduces power losses during operation, leading to higher efficiency power conversion.
• High-Frequency Operation: The SiC MOSFET technology allows for operation at higher frequencies, which can reduce the size of passive components and overall system footprint.
• Robust Package: The module comes in a rugged package that ensures excellent mechanical stability and simplifies the assembly process.
• High Power Density: The compact design and high-performance characteristics enable high power density, making it ideal for space-constrained applications.

With a voltage rating of 1200V and a current rating of 40A, the MSC040SMA120B is well-suited for a variety of power applications that require high efficiency and reliability. Its easy-to-use module format simplifies the design process, allowing engineers to quickly integrate it into their systems without the need for extensive power electronics expertise.

Overall, the MSC040SMA120B from Microchip Technology is a powerful solution for designers looking to leverage the advantages of SiC technology in their power conversion systems. Its combination of high performance, efficiency, and reliability make it a standout choice for cutting-edge applications.
