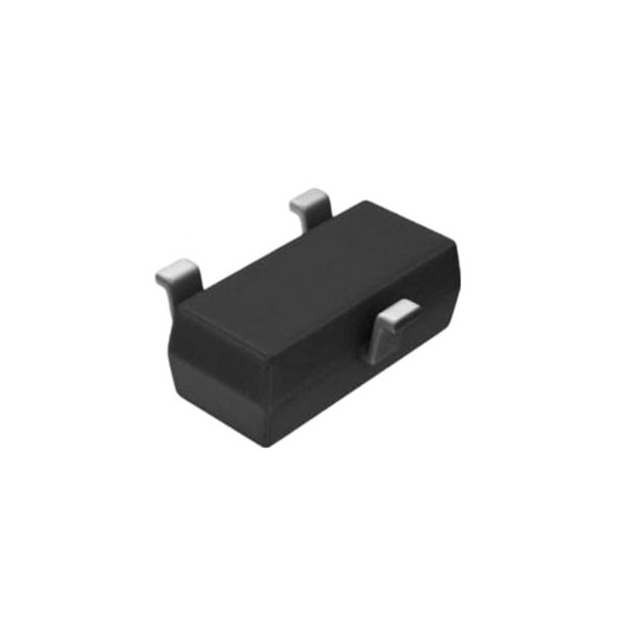

Same model may have multiple batches, images only for reference.
SI2301-3A MDD – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SI2301-3A

Part No SI2301-3A
Manufacturer MDD
Catalog Transistors - FETs, MOSFETs - RF
Description P-Channel 20 V 3A (Ta) 225mW (Ta) Surface Mount SOT-23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr MDD
Series SOT-23
Packaging Reel - TR
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 3.3V, 4.5V
Rds On (Max) @ Id, Vgs 90mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6.6 nC @ 10 V
Vgs (Max) ±10V
Input Capacitance (Ciss) (Max) @ Vds 330 pF @ 10 V
Power Dissipation (Max) 225mW (Ta)
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Surface Mount
Supplier Device Package SOT-23
Package / Case TO-236-3, SC-59, SOT-23-3
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 1477436-SI2301-3A
Ultra Librarian 3D Model Ultra Librarian SI2301-3A CAD Model
