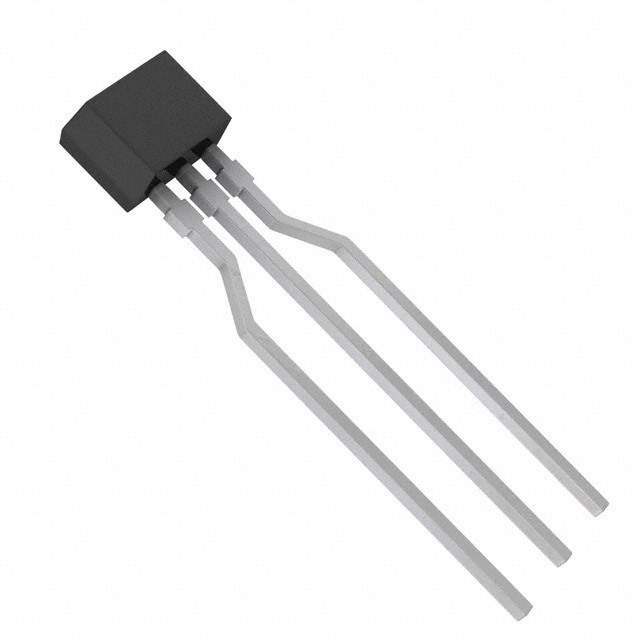

2SD145000A Real Image
Same model may have multiple batches, images only for reference.

2SD145000A

Part No 2SD145000A
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 20V 0.5A NS-B1
Datasheet
2SD145000A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 20V
Max Vce (sat) 400mV @ 20mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 200 @ 500mA, 2V
Maximum Power Dissipation 300mW
Frequency - Transition 200MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package NS-B1
Win Source Part Number 1004539-2SD145000A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SD145000A CAD Model

Description

The Panasonic Electronic Components 1004539-2SD145000A is a transistor (NPN) that has a frequency transition of 200MHz and is designed for through-hole mounting.

  • Frequency transition: 200MHz
  • Mounting: through-hole mounting
  • Popularity: medium-popularity product
  • Status: obsolete (EOL)
  • Temperature range: 150°C (TJ)
  • Case/package: NS-B1
  • Maximum current collector: 500mA
  • VCEO maximum collector-emitter breakdown voltage: 20V
  • Maximum Vce (sat): 400mV @ 20mA, 500mA
  • Collector cut-off current (max): 100nA (ICBO)
  • Typical gain (hFE) (min): 200 @ 500mA, 2V
  • Maximum power dissipation: 300mW
