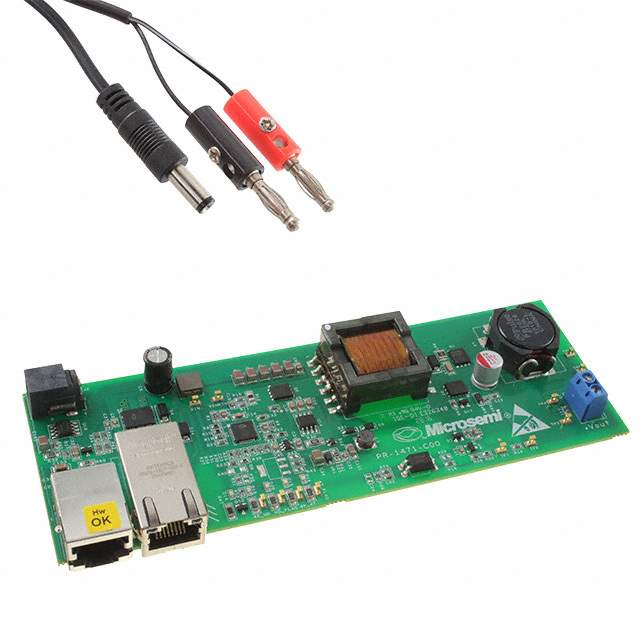

The PD70211EVB50FW-5 is a high-performance evaluation board presented by Microchip Technology, designed to showcase the capabilities of the PD70211 PoE-PD interface controller. This evaluation board is an excellent tool for engineers and developers who are working on Power over Ethernet (PoE) solutions and need to evaluate and test the PD70211 IC in a real-world environment.

Key Features

• PD70211 IC Integration: At the heart of the PD70211EVB50FW-5 evaluation board is the PD70211, an IEEE 802.3af/at compliant PoE-PD interface controller that provides efficient power extraction and high-level communication for PoE systems.
• Flexible Power Options: The board is capable of receiving up to 30W of power, making it suitable for a wide range of applications that require higher power levels, such as IP cameras, wireless access points, and IP phones.
• Advanced Protection Features: The PD70211EVB50FW-5 includes over-temperature protection, over-current protection, and under-voltage lockout, ensuring reliable operation and safeguarding the connected devices.
• Diagnostic LEDs: Onboard LEDs provide immediate visual feedback about the status of the PoE connection, including detection, classification, and power good indicators.
• Compact and Robust Design: The evaluation board is designed with a small form factor, making it easy to integrate into existing systems while maintaining robustness for extensive testing.

Applications

The PD70211EVB50FW-5 is ideal for developers looking to create or integrate PoE-enabled devices. It is especially useful in applications such as:

• Enterprise networking equipment
• Industrial automation systems
• VoIP phones and IP cameras
• Wireless access points and network routers
• Smart home devices and IoT products

Support and Resources

Microchip Technology provides extensive support for the PD70211EVB50FW-5 evaluation board, including detailed documentation, application notes, and reference designs. Engineers and developers can access these resources on the Microchip website to accelerate development and streamline the integration of the PD70211 controller into their PoE solutions.
