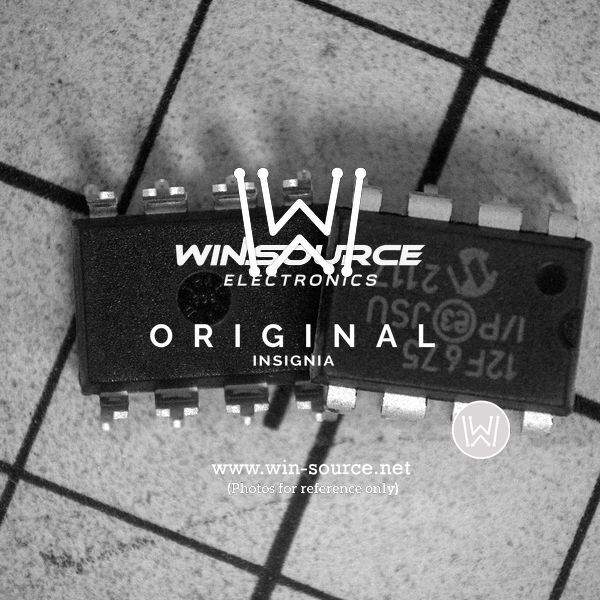

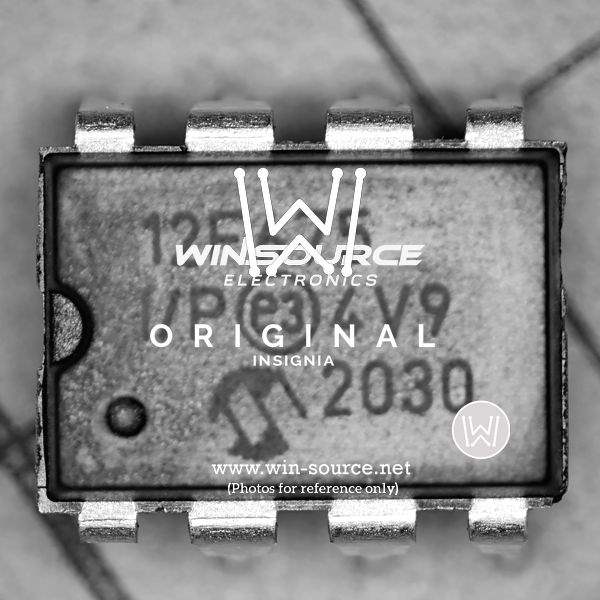

Product Overview: PIC12F675-I/P from Microchip Technology

The PIC12F675-I/P is a powerful microcontroller that offers a versatile and cost-effective solution for a wide range of embedded applications. Manufactured by Microchip Technology, a leading provider of microcontroller and analog semiconductors, this device is part of their renowned PIC® microcontroller family, known for its user-friendly features and robust performance.

This 8-bit microcontroller is packed with features, despite its small size. It comes in a PDIP (Plastic Dual In-line Package) with 8 pins, which makes it ideal for space-constrained applications. The PIC12F675-I/P operates at a voltage range of 2.0V to 5.5V, providing a flexible power management system that can cater to low-power and battery-powered applications.

Key Features

• Flash Memory: It is equipped with 1.75KB of flash memory, which is beneficial for applications requiring in-circuit re-programmability and a non-volatile storage solution.
• RAM and EEPROM: The device also includes 64 bytes of RAM and 128 bytes of EEPROM data memory, further enhancing its storage capabilities.
• GPIO Pins: The PIC12F675-I/P features 6 I/O pins that are highly configurable, allowing designers to tailor the microcontroller to their specific needs.
• Internal Oscillator: With an internal 4MHz oscillator, this microcontroller eliminates the need for an external clock source, thereby reducing the overall system cost and complexity.
• Analog-to-Digital Converter: The integrated 10-bit 4-channel ADC (Analog-to-Digital Converter) makes it suitable for interfacing with analog sensors and performing precise analog input readings.
• Timers and PWM: It includes two timers and a PWM (Pulse Width Modulation) module, which are essential for time-related operations and controlling devices like motors and LEDs.
• Watchdog Timer: A programmable Watchdog Timer with its own on-chip RC oscillator provides reliable operation and protects against system failures.

The PIC12F675-I/P is a versatile choice for many applications, including automotive, consumer electronics, industrial control systems, and more. Its ease of use, coupled with Microchip's comprehensive development tools, makes it an excellent choice for both beginners and experienced developers looking to bring their projects to life efficiently.

Whether you're designing a simple LED controller or a complex system requiring multiple input/output operations, the PIC12F675-I/P provides a solid foundation for your embedded system design.
